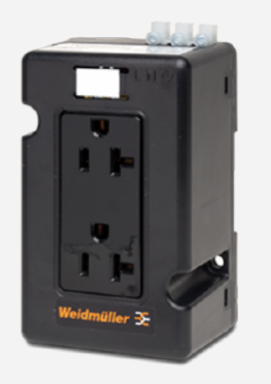

Weidmuller 6720005421 DRAC DP 15
- MPN: 6720005421
- PPN: WDM-6720005421
CAD
$45.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
DRAC DP 15
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 VAC nominal, 125 VAC max.
- Operating Frequency
- 50-60 Hz
- Current Interrupting
- 2 kA
- Operating Temperature
- -25°C to 60°C
- Length
- 123.6 mm / 4.9 in.
- Height
- 61.5 mm / 2.4 in.
- Termination Wire Size
- 20-10 AWG, solid or stranded copper
- Terminations
- Screw terminals, slotted
- Enclosure Base Material
- Polyamide 6/6 30% GF, UL94 V0 @ 0.63 mm
- Enclosure Type
- NEMA WD6, 5-15R
Current15 A max.
Short-Circuit Current Rating (SCCR)10 kA
Dielectric VoltageWithstands 2000 V per UL498
Storage Temperature-35°C to 80°C
Width74.1 mm / 2.9 in.
MountingTS35 DIN-Rail or direct panel mount
Terminal Torque0.79 Nm / 7 lb.-in.
Enclosure Cover MaterialPBT/polycarbonate blend, UL94 V0 @ 0.63 mm
Spring MaterialStainless Steel
ApprovalscULus Listed to UL508A and C22.2 No. 14
