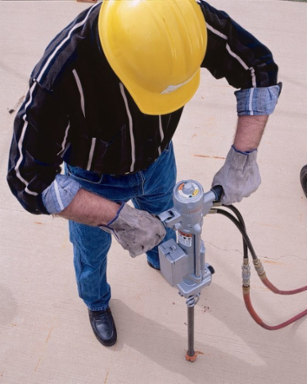

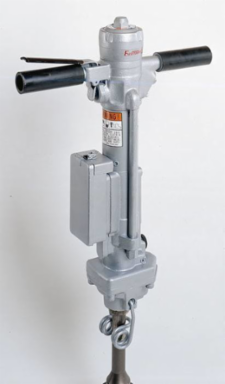

Greenlee HRD44A Hydraulic Rock Drill 44 lb, 2-1/2" Diameter, 0-400 RPM, 25" Length
- MPN: HRD44A
- UPC: 783310111047
- PPN: GRN-HRD44A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hydraulic Rock Drill 44 lb, 2-1/2" Diameter, 0-400 RPM, 25" Length
Features
- On-board air compressor provides air to clean dust out of holes with guard
- Drill rotation speed is adjustable from 0 to 400 rpm with a 4-position dial. Tool can be operated without rotation
- Has vibration isolated and cushioned handles to reduce operator fatigue
- Simple design provides excellent durability and simple repair
- Drills a 2-1/2" (65 mm) diameter hole up to 10 feet (3 m) deep
- Supplied with 12" (305 mm) steel braided whip hoses
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Japan
- Length
- 25.000 IN (626.000 MM)
- Accessory
- F020198K UPC 41780 HTMA Male Coupler 3/8 IN NPTF
- Air Pressure
- 29 PSI (2 BAR)
- Chuck Size
- 7/8 IN (22.000 MM) Diameter X4-1/4 IN (108 MM) Length
- Hydraulic System
- Open-Center
- Operating Pressure
- 1275 - 1700 PSI (88 - 118 BAR)
- Type
- Hydraulic
Width16.000 IN (412.000 MM)
Weight44.000 LB (20.000 KG)
Air Flow2.8 CU FT/MIN (80 LPM)
Blows Per Minute1400 BPM Maximum (Varies withRotation Speed)
Hydraulic Flow Range5 - 7 GPM (19 - 25 LPM)
Maximum Pressure3000 PSI (207 BAR)
Speed0 - 400 RPM Drill Rotation
Whip Hoses3/8 IN NPTF X 12.000 IN (305.000 MM)
