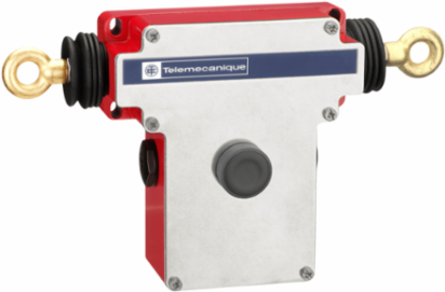

Telemecanique Sensors XY2CEDA190 Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, flush pb
Telemecanique Sensors XY2CEDA190 Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, flush pb
- MPN: XY2CEDA190
- PPN: TES-XY2CEDA190
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$855.67/ EA
Description
This product is part of the XY2C range, an offer of emergency stop rope pull switches. This emergency stop rope pull switch has 1 NC and 1 NO, slow break contacts with the positive opening operation. The switch with a rated operating current of 3A at 240V AC, 0.27A at 250V DC and conventional enclosed thermal current of 10A. It is furnished with screw clamp terminals for electrical connection and 3 plain holes for PG13.5 or ISO M20 cable gland. The trigger cable anchor point at right and left hand sides. It offers long mechanical durability of about 60,000 operating cycles. It is an IP66 rated product. The casing is made of Zamak (red) with stainless steel cover. It weighs 1.9kg. It is suitable for woodworking machines, conveyor systems, printing machines, textile machines, rolling mills, test laboratories and surface treatment works. This product is certified by CE, CSA, CCC, EAC and UL. It meets CSA C22.2 No 14, EN/ISO 13850, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/IEC 60204-1 and UL 508 standards. The XY2 line of switches come in a robust metal enclosure so they can be used in severe environments and they conform to EN/ISO 13850 and EN/IEC 60947-5-5. XY2 range emergency stop rope pull switch is intended for all machines requiring stopping of a dangerous movement in the immediate vicinity of the machine.
Specifications
Complementary
- Reset
- by flush push-button
- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO
- Bellow Material
- nitril
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Local Signalling
- without pilot light
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Connections - Terminals
- screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
- [Ui] Rated Insulation Voltage
- 500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
- Contact Operation
- slow-break
- Mechanical Durability
- 60000 cycles
- Compatibility Code
- XY2CED
- Trigger Cable Anchor Point
- RH and LH sides
- Cover Material
- stainless steel
- Maximum Resistance Across Terminals
- 25 MOhm EN/IEC 60255-7 category 3
Number Of Cables2
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60269
Positive Openingwith EN/IEC 60947-5-1
MarkingCE
Net Weight1.9 kg
Trigger Cable Maximum Length2 x 100 m
Contacts Type And Composition2 x (1 NC + 1 NO)
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Distance Between Cable Supports3-5 m
Cable Entry Number3 plain hole Pg 13.5 or ISO M20 cable gland
Body Materialzamak
Safety Reliability DataB10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
Tightening Torque0.8-1.2 N.m
Safety Levelcan reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Specifications
- Range Of Product
- Telemecanique Emergency stop rope pull switches XY2C
- Housing Colour
- red RAL 3000
- Device Short Name
- XY2CED
Product Or Component Typedual emergency stop rope pull switch
Overvoltage Categoryclass I EN/IEC 61140
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL category NISD emergency stop devices || CSA || CCC || EAC
- Vibration Resistance
- 10 gn 10-300 Hz)EN/IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
StandardsCSA C22.2 No 14 || EN/ISO 13850 || EN/IEC 60947-5-5 || UL 508 || work equipment directive 2009/104/EC || EN/IEC 60947-5-1 || EN/IEC 60204-1 || machinery directive 2006/42/EC
Shock Resistance50 gn 11 ms EN/IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Protective TreatmentTC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111159EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
