Tripp Lite N520-06M 50/125 Duplex Multimode Fiber Patch Cable (LC/LC), 6 Meter, OM2, FDDI Rated
- MPN: N520-06M
- UPC: 037332149244
- PPN: TRP-N520-06M
CAD
$29.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

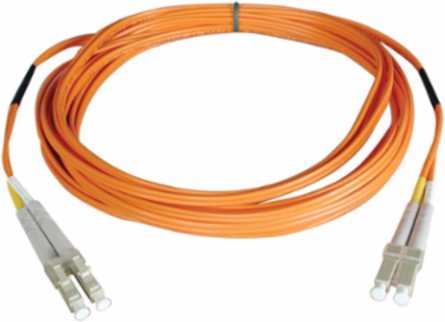

50/125 Duplex Multimode Fiber Patch Cable (LC/LC), 6 Meter, OM2, FDDI Rated
Features
- Premium PVC multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Network Speed
- 1 Gbps
- Number of Fibers
- 2
- Clad Diameter
- 125 micron
- Fiber Type
- 50/125 micron Duplex Multimode
- Attenuation
- 3.5 dB/km @850 nm max, 1.0 dB/km @1300 nm max
- Connector Type
- LC Duplex Male to LC Duplex Male
- Primary Coating Material
- Acrylate
- Proof Test Level
- 100,000 PSI
- Compliance
- FDDI Rated, OFNR Rated
Cable Length6 m (20 ft)
Core Diameter50 micron
Optical ModeOM2
Bandwidth220 MHz-km @850 nm, 600 MHz-km @1300 nm
Numerical Aperture0.275 nominal
Cable Jacket MaterialPVC
Secondary Coating Diameter900±50 micron
ColorOrange
WarrantyLifetime Limited Warranty
