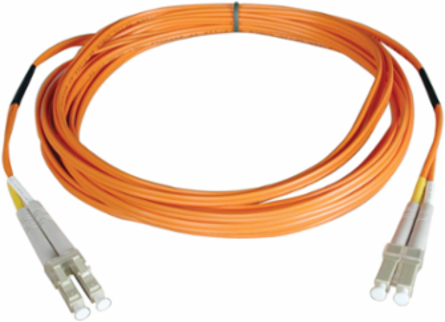

Tripp Lite N520-08M Duplex Multimode Fiber Patch Cable LC/LC, 8 Meter, 50/125 Micron, 1Gbps
- MPN: N520-08M
- UPC: 037332147523
- PPN: TRP-N520-08M
CAD
$31.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Multimode Fiber Patch Cable LC/LC, 8 Meter, 50/125 Micron, 1Gbps
Features
- Premium PVC multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Cable Length
- 8 m (26 ft)
- Technology
- Multimode
- Bandwidth
- 220 MHz-km @850 nm, 600 MHz-km @1300 nm
- Proof Test Level
- 100,000 PSI
- Number of Fibers
- 2
- Clad Diameter
- 125 micron
- Secondary Coating Diameter
- 900 micron
- Side B - Connector 1
- LC Duplex (Male)
- Secondary Coating Material
- PVC
- Push/Pull Tabs
- No
- Approvals
- FDDI, OFNR rated
Network Speed1 Gbps
Optical ModeOM2
Attenuation3.5 dB/km @850 nm, 1.0 dB/km @1300 nm
Numeric Aperture0.275 nominal
Core Diameter50 micron
Primary Coating Diameter245 micron
Side A - Connector 1LC Duplex (Male)
Primary Coating MaterialAcrylate
Jacket MaterialPVC
ColorOrange
Product Warranty Period (Worldwide)Lifetime limited warranty
