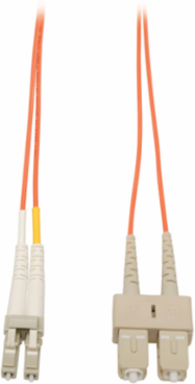

Tripp Lite N516-20M Duplex Multimode Fiber Patch Cable 50/125, 20M (65 ft.), LC/SC Connectors
- MPN: N516-20M
- UPC: 037332123640
- PPN: TRP-N516-20M
CAD
$80.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Multimode Fiber Patch Cable 50/125, 20M (65 ft.), LC/SC Connectors
Features
- Perfect for use with Fibre Channel Controller Cards and Switches
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- Premium PVC multimode patch cables
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Cable Length | 65.6 ft (20 m) |
|---|---|
| Optical Mode | OM2 |
| Core Diameter | 50 micron |
| Cable Jacket Rating | LSZH |
| Side B Connector | SC Duplex Male |
| Material - Primary Coating | Acrylate |
| Primary Coating Diameter | 245 15 micron |
| Attenuation @850NM | 3.5 dB/km max |
| Bandwidth @850NM | 220 MHz-km minimum |
| Proof Test Level | 100,000 PSI |
| Product Warranty | Lifetime limited warranty |
| Network Speed | 1 Gbps |
|---|---|
| Number of Fibers | 2 |
| Clad Diameter | 125 micron |
| Side A Connector | LC Duplex Male |
| Color | Orange |
| Material - Secondary Coating | PVC |
| Secondary Coating Diameter | 900 50 micron |
| Attenuation @1300NM | 1.0 dB/km max |
| Bandwidth @1300NM | 600 MHz-km minimum |
| Compliance | FDDI and OFNR rated |
