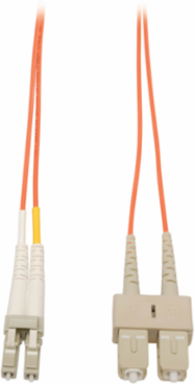

Tripp Lite N516-02M Multimode Duplex Fiber Patch Cable 50/125, 2M (6 ft.), LC/SC Connectors
- MPN: N516-02M
- UPC: 037332119575
- PPN: TRP-N516-02M
CAD
$21.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Multimode Duplex Fiber Patch Cable 50/125, 2M (6 ft.), LC/SC Connectors
Features
- Multimode duplex (50µ/125) fiber patch cable
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Cable Length
- 6.6 ft (78.7 in.)
- Number of Fibers
- 2
- Clad Diameter
- 125 micron
- Connector Types
- LC Duplex (Male), SC Duplex (Male)
- Technology
- Multimode
- Bandwidth
- 220 MHz-km @ 850 nm min, 600 MHz-km @ 1300 nm min
- Numeric Aperture
- 0.275
- Primary Coating Diameter
- 245 micron
- Secondary Coating Diameter
- 900 micron
- Approvals
- FDDI and OFNR rated
- Color
- Orange
Network Speed1 Gbps
Core Diameter50 micron
Optical ModeOM2
Fiber Type50/125 micron multimode duplex
Attenuation Loss3.5 dB/km @ 850 nm max, 1.0 dB/km @ 1300 nm max
Insertion Loss0.2 dB typical
Proof Test Level100,000 PSI
Primary Coating MaterialAcrylate
Secondary Coating MaterialPVC
WarrantyLifetime limited warranty
