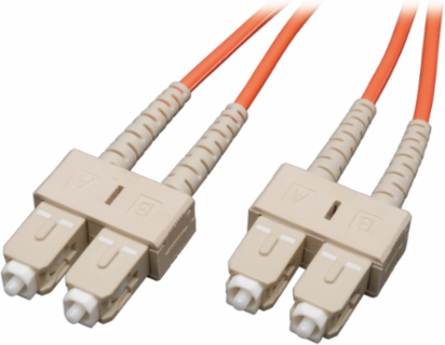

Tripp Lite N506-01M 1M Duplex Multimode Fiber Patch Cable SC/SC, 50/125 Micron, LSZH, FDDI Rated
- MPN: N506-01M
- UPC: 037332119438
- PPN: TRP-N506-01M
CAD
$25.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1M Duplex Multimode Fiber Patch Cable SC/SC, 50/125 Micron, LSZH, FDDI Rated
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Number of Fibers
- 2
- Attenuation
- 3.5 dB/km @ 850nm, 1.0 dB/km @ 1300nm
- Insertion Loss
- 0.2 dB typical
- Proof Test Level
- 100,000 PSI
- Side A - Connector 1
- SC Duplex (Male)
- Core Diameter
- 50 micron
- Optical Mode
- OM2
- Cable Jacket Material
- PVC, LSZH
- Primary Coating Diameter
- 245 micron
- Secondary Coating Diameter
- 900 micron
- Approvals
- FDDI and OFNR rated
- Color
- Orange
Network Speed1 Gbps
Bandwidth220 MHz-km @ 850nm, 600 MHz-km @ 1300nm
Numeric Aperture0.275 nominal
Cable Length3.3 ft (39.4 in)
Side B - Connector 1SC Duplex (Male)
Clad Diameter125 micron
Fiber TypeDuplex Multimode 50/125 micron
Cable Jacket RatingLSZH
Primary Coating MaterialAcrylate
Secondary Coating MaterialPVC
Product Warranty Period (Worldwide)Lifetime limited warranty
