Leviton 4795-2R 15 Amp 125 Volt Industrial Grade Straight Blade Duplex Receptacle, NEMA 5-15R
Leviton 4795-2R 15 Amp 125 Volt Industrial Grade Straight Blade Duplex Receptacle, NEMA 5-15R
- MPN: 4795-2R
- UPC: 078477943816
- PPN: LEV-4795-2R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$82.05/ EA
Description

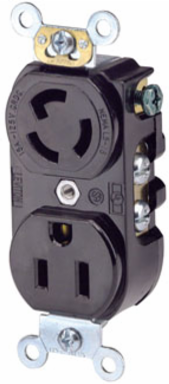

Duplex Receptacle Outlet, Straight Blade and Locking, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire; 2 Hot 2 Neutral Returns, NEMA 5-15R_L5-15R, 2-Pole, 3-Wire, Self-Grounding - Black
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
- Warranty
- Limited Lifetime Warranty Warranty
CSA C22.2 No. 42File 152105
NOM057
UL498File E13399
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Line Contacts
- Brass .031 Thick
- Terminal Screws
- Brass 10-32
ColorBlack
Grounding ScrewBrass 8-32
Strap MaterialSteel
YokeZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Termination
- Back & Side
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
