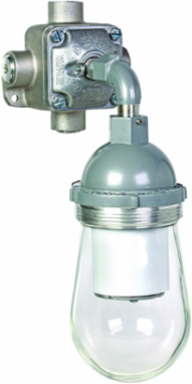

Killark DVL1330B1G LED Dust Tight Utility Light 13 Watt 1144 Lumens 120-277 VAC
Killark DVL1330B1G LED Dust Tight Utility Light 13 Watt 1144 Lumens 120-277 VAC
- MPN: DVL1330B1G
- UPC: 783936109374
- PPN: HBL-DVL1330B1G
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1742.23/ EA
Description
The DVL Series is a Dust Tight/ Utility fixture using energy efficient LED's. This fixture is made with a cast copper-free aluminum housing and mount that is suitable for harsh and hazardous environments. With the design of this fixtures internal heat sink keeps a clean look on the outside of the fixture creating a LED fixture that does not contain external heat fins.
Features
- Compact in Size with Traditional Industrial Appearance and Suitability
- DVL LED Housings can be retrofitted to existing DV Series splice boxes to upgrade from incandescent housing 100 Series components
- World Voltage 120 - 277VAC 50/60Hz
- Instant On – Including after power interruption
- Solder-LESS LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- The DVL Series is a Dust Tight/ Utility fixture using energy efficient LED's. This fixture is made with a cast copper-free aluminum housing and mount that is suitable for harsh and hazardous environments. With the design of this fixtures internal heat sink keeps a clean look on the outside of the fixture creating a LED fixture that does not contain external heat fins.
Specifications
Specifications
- Country of Origin
- US
- Hub Size
- 1/2"
- Optic Type
- Glass Globe - Clear
- Finish Type
- Powder Epoxy Paint
- Mounting Type
- Wall Bracket
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DV LED 13W 120-277VAC 1/2'' WALL GRD
- Harmonization Code
- 9405116020
- MSDS Flag
- No
- Lumen Range
- 0-2,000 lm
- Light Source
- LED
- Series
- DVL Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936109374
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class II, Division 2, Groups E, F, G;Class III, Divisions 1 & 2
Lumens1144
Voltage Rating120-277 VAC
Frequency Rating50/60 Hz
Wattage13 W
Class CodeD20
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD20D220
Lumens Per Watt88
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
