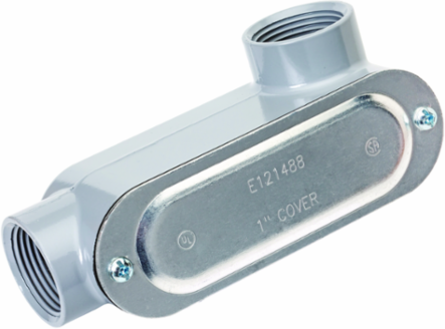

Killark EALR-8CG Aluminum Conduit Body LR Type 3 Inch Hubsize with Cover & Gasket
Killark EALR-8CG Aluminum Conduit Body LR Type 3 Inch Hubsize with Cover & Gasket
- MPN: EALR-8CG
- UPC: 783936075259
- PPN: HBL-EALR-8CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$726.11/ EA
Description
E Series - Aluminum Conduit Body with Cover And Gasket - LR Type - Hubsize 3 Inch
Features
- Flat back design for easy mounting close to walls
- Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish
- May be used on aluminum or steel conduit
- Lightweight, makes installation simple
- Ideal for commercial and light industrial applications
- Furnished with cover and gasket
- Assembled with cover and gasket to speed installation - installer has all components needed. Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on alumi
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 6.500 in
- Color
- Gray
- Hub Size
- 3"
- Special Features
- Assembled with cover and gasket to speed installation - installer has all components needed. Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on alumi
- Width
- 6.5 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- BODY, CVR, GASK, 3" LR ALUM
- Harmonization Code
- 7609000000
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LR
- Series
- E Series
- BOX SIZE
- 5.500x17.500x6.500 (in)
- Carton - Total Units
- 1 EA
- Master Pack Description
- Each
Dimensions17.5 in x 6.5 in x 5.5 in
ApplicationFor use on threaded rigid/IMC conduit. Use conduit outlet bodies for connecting conduit sections, for making bends in conduit runs, as pull outlets, or to provide openings for making splices and taps in conductors.
Height5.5 in
Length17.5 in
TypeConduit Body With Cover & Gasket
Cover TypeStamped
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging6.34
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936075259
Item Package TypeK-PAK (cover & gasket included)
Certifications
- EU RoHS Indicator
- Contact Manufacturer
