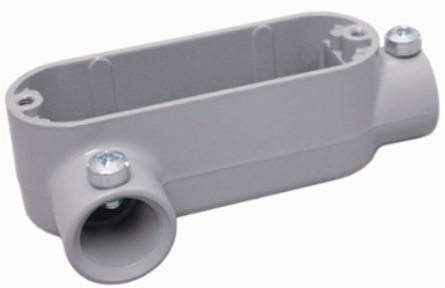

Killark EBLR-2 Aluminum 3/4 Inch LR Conduit Body Fitting, 5.125 Inch Length, Powder Epoxy Finish
Killark EBLR-2 Aluminum 3/4 Inch LR Conduit Body Fitting, 5.125 Inch Length, Powder Epoxy Finish
- MPN: EBLR-2
- UPC: 783936165738
- PPN: HBL-EBLR-2
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$55.42/ EA
Description
E Series Fitting, Aluminum, 3/4" LR Conduit Body Set Screw
Features
- Flat back design for easy mounting close to walls
- Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish
- May be used on aluminum or steel conduit
- Lightweight, makes installation simple
- Ideal for commercial and light industrial applications
- Furnished with cover and gasket
- Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on aluminum or steel conduit. Lightweight, makes installation simple. Volume is 7 cu. in.
Specifications
Specifications
- Country of Origin
- India
- Application
- For use with EMT conduit in dry locations. Use conduit bodies for making turns in conduit systems, connecting conduit sections, as pull outlets, and to provide openings for maintenance and making taps and splices to conductors.
- Height
- 1.688 in
- Length
- 5.125 in
- Type
- Conduit Body
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 3/4" LR CONDUIT BODY SET SCREW
- Harmonization Code
- 7609000000
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LR
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 26.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
Dimensions5.125 in x 2.938 in x 1.688 in
ColorGray
Hub Size3/4"
Special FeaturesFlat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on aluminum or steel conduit. Lightweight, makes installation simple. Volume is 7 cu. in.
Width2.938 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.52
MaterialAluminum, Copper Free (less than 4/10 of 1%)
BOX SIZE6.250x24.000x11.000 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack00783936165738
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
