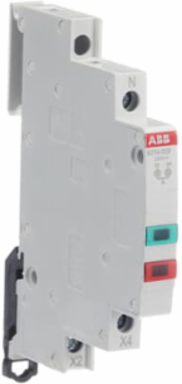

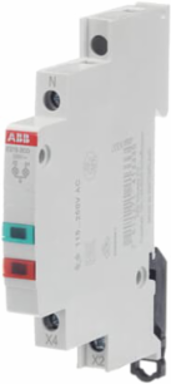

ABB E219-2CD Multi Indicator Light, 16 A, 115-230 V AC, 2 LEDs, Red/Green, Width: 9 mm

Multi Indicator Light, 16 A, 115-230 V AC, 2 LEDs, Red/Green, Width: 9 mm
Multi Indicator Light, 16 A, 115-230 V AC, 2 LEDs, Red/Green, Width: 9 mm
Multi Indicator Light, 16 A, 115-230 V AC, 2 LEDs, Red/Green, Width: 9 mm
  • MPN: E219-2CD
  • UPC: 888614283046
  • PPN: ABB-E219-2CD

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$60.45/ EA

Description

multi indicator light with 2 red, green LEDs Voltage range = 115-230 VAC Module width 0,5

Specifications

Installation

Instructions and Manuals
No document needed

Dimensions

Width in Number of Modular Spacings
0.5
Product Net Height
85 mm
Product Net Weight
45 g
Product Net Width9 mm
Product Net Depth / Length68 mm
Built-In Depth (t2)68 mm

Technical

Standards
EN60068-2-1EN60068-2-2EN60068-2-30DIN EN 62094-1UL508
Rated Operational Voltage
115 ... 230 V AC
Voltage Range
115 ... 250 V AC
Auxiliary Voltage AC/DC
LED Indicator 115...250 V AC
Rated Current (In)
16 A
Power Loss
0.47-1 W
Number of LEDs
2
Lamp Type
LED
Material of Conductor
Copper
Color
Green, red
Connecting Capacity
Solid 1x1…6 mm²Solid 2x2.5 mm²Flexible 1x0.75…2x2.5 mm²
Rated Voltage (Ur)230 V
Rated Insulation Voltage (Ui)250 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Frequency (f)50/60 Hz
Power Watt0.8 W
Tightening Torque1.2-1.5 N·m
Switch TypeDouble Interrupting Contacts
RemarksSealable in the On and Off positions
Lamp ColorRed / Green
Service LifeLED Indicator 50000 hour

Classifications

ETIM 9
EC001657 - Indicator light for distribution board
WEEE B2C / B2B
Business To Consumer
eClass
V11.0 : 27142324
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885365053
Object Classification CodeP

Environmental

Ambient Air Temperature
Operation -25...+55 °CStorage -40...+70 °C
RoHS Information
2CCC441015D0201
Environmental Information
2CCC441002C0201
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration2CCC005047D0201
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363

Technical UL/CSA

Short-Circuit Current Rating (SCCR)
3 kA

Ordering

Minimum Order Quantity
10 piece
Package Level 1 Gross Weight
508 g
E-Number (Switzerland)
472556438
Package Level 1 Unitsbox 10 piece
E-Number (Finland)2312363
