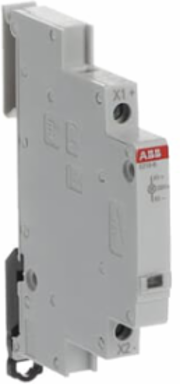

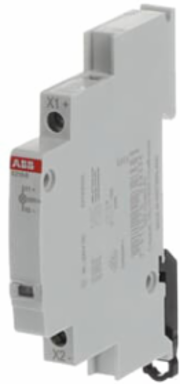

ABB E219-B220 E219-B220Indicator Light,16 A,220 V,2LED,White, MW:0.5
ABB E219-B220 E219-B220Indicator Light,16 A,220 V,2LED,White, MW:0.5
- MPN: E219-B220
- UPC: 804325649209
- PPN: ABB-E219-B220
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$39.49/ EA
Description
Indicator light with maintenance-free LED, LED colour: white 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC Module width 0,5
Specifications
Installation
- Instructions and Manuals
- No document needed
Dimensions
- Width in Number of Modular Spacings
- 0.5
- Product Net Height
- 85 mm
- Product Net Weight
- 43 g
Product Net Width9 mm
Product Net Depth / Length68 mm
Built-In Depth (t2)59 mm
Technical
- Standards
- EN60068-2-1EN60068-2-2EN60068-2-30DIN EN 62094-1UL508
- Rated Operational Voltage
- 220 V
- Voltage Range
- 60 ... 220 V DC
- Auxiliary Voltage AC/DC
- LED Indicator 60…220 V AC
- Rated Current (In)
- 16 A
- Power Loss
- 0.47-1 W
- Number of LEDs
- 2
- Lamp Type
- LED
- Material of Conductor
- Copper
- Color
- White
- Lamp Color
- White
- Service Life
- LED Indicator 50000 hour
Rated Voltage (Ur)230 V
Rated Insulation Voltage (Ui)250 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeDC
Rated Frequency (f)50/60 Hz
Power Watt1 W
Tightening Torque1.2-1.5 N·m
Switch TypeDouble Interrupting Contacts
RemarksSealable in the On and Off positions
Cover ColorWhite
Connecting CapacitySolid 1x1…6 mm²Solid 2x2.5 mm²Flexible 1x0.75…2x2.5 mm²
Classifications
- ETIM 9
- EC001657 - Indicator light for distribution board
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- CN8
- 85365053
- Object Classification Code
- P
EPLAN Function DefinitionSignal lamp / Lamp, single / Lamp, single X1_X2
WEEE B2C / B2BBusiness To Consumer
eClassV11.0 : 27142324
Environmental
- Ambient Air Temperature
- Operation -25...+55 °CStorage -40...+70 °C
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- REACH Declaration
- 2CCC005047D0201
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
Degree of ProtectionIP20
RoHS Information2CCC441015D0201
Environmental Information2CCC441002C0201
Technical UL/CSA
- Short-Circuit Current Rating (SCCR)
- 3 kA
Ordering
- Minimum Order Quantity
- 10 piece
- Package Level 1 Gross Weight
- 484 g
- E-Number (Switzerland)
- 472453138
Package Level 1 Unitsbox 10 piece
E-Number (Finland)2312301
