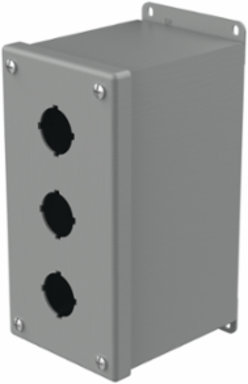

nVent Hoffman E3PBX Extra-Deep Pushbutton Enclosure Type 12, 3PB x 30.5mm, Steel, NEMA 12, IP65
- MPN: E3PBX
- UPC: 783510581404
- PPN: HOF-E3PBX
- UNSPSC: 39121326
CAD
$217.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Extra deep pre-cut pushbutton enclosures give the most room for deep contact blocks and wiring. This Extra-Deep Pushbutton Enclosure Type 12, E3PBX item measures 3PBx30.5mm with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 102
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Thickness (T)
- 1.9
- Hole Quantity
- 3
- Overall Dimensions (L x W)
- 229 x 107
- Weight
- 4.1
- Material
- Steel
- Color
- Gray
Height (H)203
Depth (D)121
Product FamilyPushButton
Color CodeANSI 61
Hole Size (HS)30.5
Mounting (G x H)216 x 79
IP RatingIP65
Number of Holes3
Size3PB x 30.5mm
NEMA Rating12 Indoor, dust-resistant
