Schneider Electric EMS59201 PowerLogic SC150 MV Switch Controller, 8 Digital Inputs, 2 Relay Outputs
- MPN: EMS59201
- PPN: SCH-EMS59201
- UNSPSC: 39122214
CAD
$1501.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

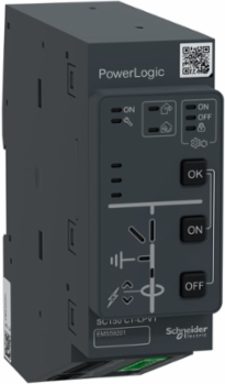

The Easergy SC150 module offers many high-performance features needed to measure and detect a fault current on the MV line. The switch controller are designed for clip in DIN rail. The measurement voltage range from 0…10 VAC LPVT and from 47…240 VAC VTs. It include 8 digital inputs, 2 digital relay switch, and 2 RJ45 communication port. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 85°C. Mechanical dimensions are 140 mm in height, 45 mm in width and 140 mm in depth.
Features
- Switchgear control and monitor
- Advanced fault current detection
- Power measurement
- Power quality
- Sectionalizer automation
- Embedded operator HMI
- Disturbance recording
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Estonia |
|---|---|
| Depth | 140 mm |
| Weight | 650 g |
|---|
Communications & Management Attributes
| Communication Port Protocol | IEC 60870-5-104 |
|---|
| Communication Port Support | 2 ETHERNET RJ45 |
|---|
Complementary Attributes
| Irms Rated Making Capacity | 15 A during 4 s |
|---|---|
| Us Rated Supply Voltage | 12...48 V DC +/- 20 % |
| Maximum Switching Voltage | 440 V AC |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Data Recording | sag and swell logs, harmonics logs, min/max of instantaneous values, demand values, event logs, sequence of event recording, counter, current value before fault |
| Measurement Current | 5-5 A, 1-1 A |
| Mechanical Robustness | vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6, bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27 |
| Software Function | assistance in commissioning and operating the installation, security/authority verification, alarm, event log, Operating/Status report, reports and diagrams |
| Carbon Footprint Of The Distribution Phase A4 | 0.5889770583040508, 0.6 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.3271689946698751, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 22 kg CO2 eq., 21.903810585213666 |
| Local Publishable Date | 2025-07-10 |
| Device Type | Relay, Control & Measurement - Remote Terminal Unit / Feeder Automation |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Device Short Name | SC150 |
| Fixing Mode | clip-in (DIN rail) |
| Power Consumption In Va | 2 VA |
| Product Or Component Type | MV switch controller |
| Range Of Product | PowerLogic T300 |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 42 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | 140 mm |
| Certificate Agency | CE |
| Customs Code | 8537109150 |
| Functional Unit Description | To control and monitor medium voltage (MV) switchgear and circuit breakers, 24 hours per day, for 10 years of continuous operation. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 13 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Electromagnetic Compatibility | electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4, conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3immunity to voltage dips criteria A conforming to IEC 61000-4-29, electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, conducted and radiated emissions class A conforming to EN 55022 |
| Measurement Voltage | : 0-10 V LPVT AC at 50/60 Hz (single or three phases), : 0-10 V LPVT AC at 50/60 Hz (single or three phases), : 0-10 V LPVT AC at 50/60 Hz (single or three phases), : 0-10 V LPVT AC at 50/60 Hz (single or three phases), : 0-10 V LPVT AC at 50/60 Hz (single or three phases), : 47-240 V VTs AC at 50/60 Hz (single or three phases), : 47-240 V VTs AC at 50/60 Hz (single or three phases), : 47-240 V VTs AC at 50/60 Hz (single or three phases), : 47-240 V VTs AC at 50/60 Hz (single or three phases), : 47-240 V VTs AC at 50/60 Hz (single or three phases), : 0-10 V LPVT AC at 50/60 Hz (single or three phases), : 0-10 V LPVT AC at 50/60 Hz (single or three phases), : 0-10 V LPVT AC at 50/60 Hz (single or three phases), : 0-10 V LPVT AC at 50/60 Hz (single or three phases), : 0-10 V LPVT AC at 50/60 Hz (single or three phases), : 47-240 V VTs AC at 50/60 Hz (single or three phases), : 47-240 V VTs AC at 50/60 Hz (single or three phases) |
| Power Quality Analysis | voltage unbalance, individual harmonics, voltage sag and swell detection, harmonic distortion, voltage magnitude |
| Type Of Measurement | apparent power, voltage, active and reactive power, active and reactive energy, power factor, current, frequency, apparent energycurrent: class 0.5, voltage: class 0.5, energy: class 1 conforming to IEC 61557-12 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 1 kg CO2 eq., 1.395551058218616 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 17 kg CO2 eq., 17.460802859093455 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | Yes |
| Field Service Division | DPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2508027_V1 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2046 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Control Type | illuminated push-button status: |
| Energy Efficiency Optimized | False |
| Memory Capacity | 4 MB |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protection Type | ANSI 50/51 : overcurrentANSI 50N/51N : earth faultANSI 67 : directional phase overcurrentANSI 67N : directional earth faultANSI 47 : negative sequence overvoltageANSI 27 : undervoltageANSI 59 : overvoltageANSI 59N : neutral voltage displacementANSI 37 : phase undercurrent |
| Returnability | No |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 45 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 41.67631055549966 |
| Environmental Disclosure | ENVPEP2508027EN |
| Ip Degree Of Protection | IP2X body: conforming to IEC 60529IP4X front: conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2508027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2508027_V1 |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % conforming to IEC 60068-2-30 |
| Pep Verification Date | 2025-09-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | MV switch controller |
|---|
| Range Of Product | PowerLogic T300 |
|---|
Output Attributes
| Continuous Output Current | 8 A |
|---|---|
| Output Voltage | 12...127 V DC motor:90...220 V AC motor: |
| Number Of Outputs | 2 digital (relay) switch: |
|---|
Input Attributes
| Analogue Input Type | current 0.01...35 A (impedance 0.001 Ohm)4 x |
|---|---|
| Synchronisation Time Between Inputs | 1 ms |
| Number Of Inputs | 8 digital conforming to IEC 61131-2 type 3 |
|---|
