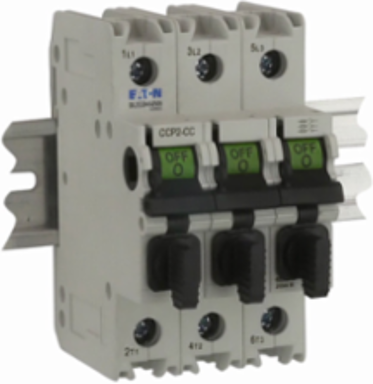

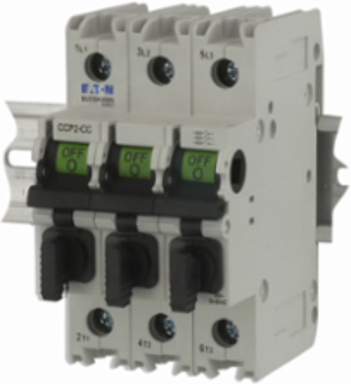

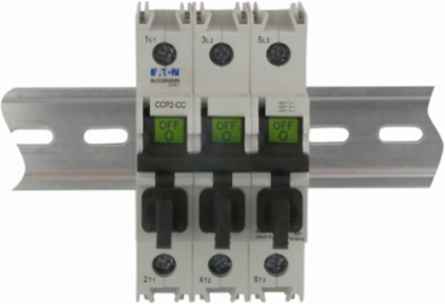

Bussmann CCP2-3-30CC UL98 Fused Disconnect 600 Vac, 125 Vdc, 30A, Three-pole, 3.7 Inch Height
- MPN: CCP2-3-30CC
- UPC: 051712709187
- PPN: BUS-CCP2-3-30CC
CAD
$156.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
UL98 Fused Disconnect 600 Vac, 125 Vdc, 30A, Three-pole, 3.7 Inch Height
Features
- By utilizing a revolutionary compact layout that requires up to 38% less space than traditional fusible switches, this 3-pole disconnect allows you to optimize high-density industrial control panels. The streamlined 35mm DIN-rail mount configuration frees up critical rail real estate, enabling smaller overall enclosure footprints and significantly lower material costs.
- Engineered with a robust 30A current rating at 600Vac (and 125Vdc), this three-pole switch is purpose-built to isolate and protect heavy-duty commercial machinery and HVAC automation setups. Its heavy-duty electrical profile safely maintains continuous load capacities without premature thermal degradation, ensuring uninterrupted uptime in harsh manufacturing environments.
- When paired with standard Class CC rejection fuses, this switch achieves a massive 200kA Short-Circuit Current Rating (SCCR). This high-tier threshold helps your entire control assembly comply with stringent National Electrical Code (NEC) rules for high fault-current areas without resorting to oversized, cost-prohibitive circuit breakers.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30A
- Number of Poles
- Three-pole
- Frequency Rating
- 50/60 Hz
- Product Height
- 3.7 in
- Product Width
- 0.3 in
- Type
- UL98 fusible disconnect
- Certifications
- Contact Manufacturer
Voltage Rating600 Vac, 125 Vdc
Short Circuit Rating200 kA
Fuse TypeClass CC
Product Length/Depth1.9 in
Product Weight1.46 lb
ApplicationFused Disconnect Switch
