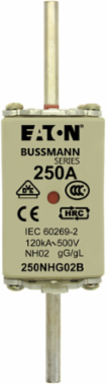

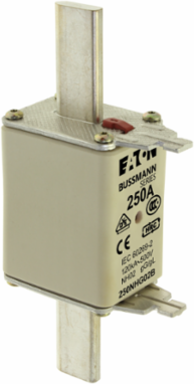

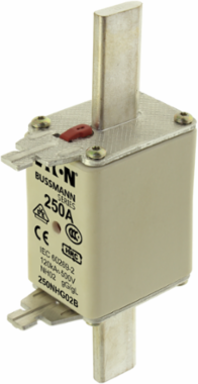

Bussmann 250NHG02B Eaton Bussmann series Dual Indication Fuse
- MPN: 250NHG02B
- UPC: 051712626163
- PPN: BUS-250NHG02B
CAD
$168.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Bussmann series Dual Indication Fuse
Specifications
Key Specifications
| Special Features | Live gripping lug |
|---|---|
| Amperage Rating | 250A |
| Fuse Indicator | With Indicator |
| Type Of Indicator | Dual (combination) Indicator system |
| Class | Class gG/gL |
| Connection | Blade end connection |
| Quantity | 3 per package |
| Contact Material | Metal plated copper contact plate |
| Height | 63 MM |
| Width | 40 MM |
| Application | Industrial |
|---|---|
| Voltage Rating | 500V |
| Packaging Type | Standard |
| Material | Ceramic body |
| Frequency Rating | 45-62 Hz |
| Fuse Type | Square-body with knife blade contact |
| Prod Size | 02 |
| Breaking Capacity | 120 kA |
| Length | 150 MM |
| Weight | .395 KG |
