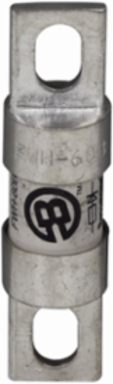

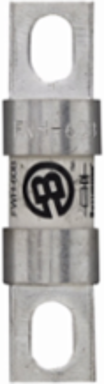

Bussmann FWH-35B High Speed Fuse 750 Vac/Vdc, 35A, 200 kAIC at 1000 Vac, Stud Connection
- MPN: FWH-35B
- UPC: 051712795746
- PPN: BUS-FWH-35B
CAD
$73.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 750 Vac/Vdc, 35A, 200 kAIC at 1000 Vac, Stud Connection
Specifications
Key Specifications
| Fuse indicator | None |
|---|---|
| Construction size | Other |
| Insulated metal gripping lugs (IMGL) | No |
| Mounting method | Stud |
| Utilization category | Other |
| Type | High speed fuse |
| Fuse shape | Cylindrical, center bolted tags |
| Pre arc (I2T) | 34 |
| Application | DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Packaging type | Standard |
| Interrupt rating | 50 kAIC at 500 Vdc |
|---|---|
| Clearing (I2T) | 150 |
| Connection | Blade end x blade end |
| Amperage Rating | 35 A |
| Watt losses | 8 W |
| Rated switching capacity | 200 A |
| Breaking capacity | 200 A |
| Voltage rating | 500 V |
| Voltage type | AC/DC |
General
| UPC | 051712795746 |
|---|---|
| Product Length/Depth | 108 mm |
| Product Width | 90 mm |
| Warranty | Not Applicable |
| Certifications | UL Recognized |
| EAN | 5027590499637 |
|---|---|
| Product Height | 28 mm |
| Product Weight | 63.8 g |
| Compliances | CE Marked |
