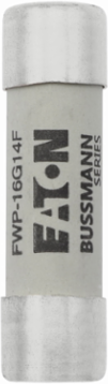

Bussmann FWP-16G14F High Speed Fuse, 690V, 16A, 200 kAIC, Ferrule End Connection
- MPN: FWP-16G14F
- UPC: 051712689496
- PPN: BUS-FWP-16G14F
CAD
$90.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High Speed Fuse, 690V, 16A, 200 kAIC, Ferrule End Connection
Documentation & Downloads
Specifications
Key Specifications
- Fuse indicator
- Non Indicating
- Construction size
- 14 mm x 51 mm
- Connection
- Ferrule end x ferrule end
- Amperage Rating
- 16 A
- Utilization category
- gR (general purpose semiconductor protection)
- Type
- High speed fuse
- Breaking capacity
- 200 A
- Pre arc (I2T)
- 15
- Application
- protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
- Packaging type
- Standard
Interrupt rating200 kAIC
Clearing (I2T)120
Release characteristicOther
Frequency rating - max62 Hz
Watt losses4.83 W
Fuse shapeCylindrical
Frequency rating - min45 Hz
Voltage rating690 V
Voltage typeAC
General
- UPC
- 051712689496
- Product Length/Depth
- 51 mm
- Product Width
- 14 mm
- Warranty
- No warranty
- Certifications
- UL Recognized
EAN5027590500258
Product Height14 mm
Product Weight19.2 g
CompliancesCE Marked
