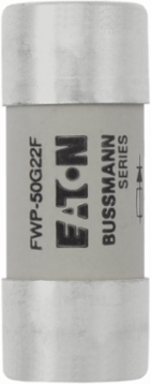

Bussmann FWP-50G22F High Speed Fuse 690V 50A 200 kAIC Ferrule End 22 mm x 58 mm
- MPN: FWP-50G22F
- UPC: 051712689700
- PPN: BUS-FWP-50G22F
CAD
$175.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 690V 50A 200 kAIC Ferrule End 22 mm x 58 mm
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Non Indicating |
|---|---|
| Construction size | 22 mm x 58 mm |
| Connection | Ferrule end x ferrule end |
| Watt losses | 11.85 W |
| Fuse shape | Cylindrical |
| Pre arc (I2T) | 273 |
| Application | protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Interrupt rating | 200 kAIC |
|---|---|
| Clearing (I2T) | 1362 |
| Amperage Rating | 50 A |
| Type | High speed fuse |
| Breaking capacity | 200 A |
| Voltage rating | 690 V |
| Packaging type | Standard |
General
| UPC | 051712689700 |
|---|---|
| Product Length/Depth | 58 mm |
| Product Width | 22 mm |
| Warranty | No warranty |
| Certifications | UL Recognized |
| EAN | 5027590500937 |
|---|---|
| Product Height | 22 mm |
| Product Weight | 51 g |
| Compliances | CE Marked |
