Bussmann

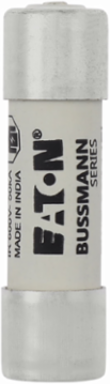

Bussmann FWP-30A14FI Eaton Bussmann series FWP high speed fuse, 700 Vac, 600 Vdc (UL), 30A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, With Indicator, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceremic

Eaton Bussmann series FWP high speed fuse, 700 Vac, 600 Vdc (UL), 30A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, With Indicator, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceremic
  • MPN: FWP-30A14FI
  • UPC: 051712510783
  • PPN: BUS-FWP-30A14FI

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$42.73/ EA

Description

Eaton Bussmann series FWP high speed fuse, 700 Vac, 600 Vdc (UL), 30A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, With Indicator, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceremic

Specifications

Specifications

Interrupt rating
200 kAIC at 300 Vdc
Amperage Rating
30 A
Fitted with:
Striker
Voltage rating
700 V
Construction size
14 mm x 51 mm
Color
White
Quantity
10
Utilization category
aR (accompanied semiconductor protection)
Type
High speed fuse
Used with
Finger safe holders/blocks and striker
Frequency rating - min
45 Hz
Pre arc (I2T)
58
Voltage type
AC/DC
Release characteristicOther
Frequency rating - max62 Hz
Fuse size14 x 51 mm
Fuse indicatorWith Indicator
Clearing (I2T)400
ConnectionFerrule end x ferrule end
MaterialCeramic
Watt losses9 W
Fuse shapeCylindrical
Breaking capacity200 A
ClassClass aR
Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging typeStandard

General

UPC
051712510783
Product Length/Depth
52 mm
Product Width
15 mm
Warranty
Not Applicable
Certifications
CSA Certified
EAN5027590500586
Product Height15 mm
Product Weight23 g
CompliancesCE Marked
