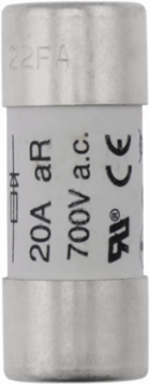

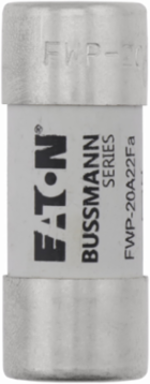

Bussman FWP-20A22F High Speed Fuse 20A 700V AC/DC 200 kAIC 22 x 58 mm Ceramic Non-Indicating
Bussman FWP-20A22F High Speed Fuse 20A 700V AC/DC 200 kAIC 22 x 58 mm Ceramic Non-Indicating
- MPN: FWP-20A22F
- UPC: 051712796521
- PPN: BUS-FWP-20A22F
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$61.07/ EA
Specifications
Specifications
- Interrupt rating
- 200 kAIC at 300 Vdc
- Amperage Rating
- 20 A
- Minimum melting
- 19 I2t (A2 sec)
- Voltage rating
- 700 V
- Construction size
- 22 mm x 58 mm
- Color
- White
- Quantity
- 10
- Utilization category
- aR (accompanied semiconductor protection)
- Type
- High speed fuse
- Used with
- Finger safe holders/blocks and striker
- Frequency rating - min
- 45 Hz
- Pre arc (I2T)
- 23
- Voltage type
- AC/DC
Release characteristicOther
Frequency rating - max62 Hz
Fuse size22 x 58 mm
Fuse indicatorNon Indicating
Clearing (I2T)330
ConnectionFerrule end x ferrule end
MaterialCeramic
Watt losses5 W
Fuse shapeCylindrical
Breaking capacity200 A
ClassClass aR
Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging typeStandard
General
- UPC
- 051712796521
- Product Length/Depth
- 56 mm
- Product Width
- 23 mm
- Warranty
- Not Applicable
- Certifications
- UL Recognized
EAN5027590500319
Product Height23 mm
Product Weight55.7 g
CompliancesCE Marked
