Bussmann

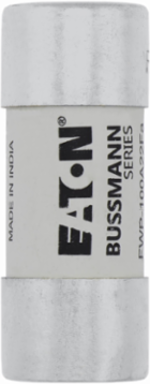

Bussmann FWP-32A22FI Eaton Bussmann series FWP high speed fuse, 700 Vac, 700 Vdc (UL), 32A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, With Indicator, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceremic

Eaton Bussmann series FWP high speed fuse, 700 Vac, 700 Vdc (UL), 32A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, With Indicator, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceremic
  • MPN: FWP-32A22FI
  • UPC: 051712510806
  • PPN: BUS-FWP-32A22FI

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$42.73/ EA

Description

Eaton Bussmann series FWP high speed fuse, 700 Vac, 700 Vdc (UL), 32A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, With Indicator, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceremic

Specifications

Specifications

Interrupt rating
200 kAIC at 300 Vdc
Amperage Rating
32 A
Fitted with:
Striker
Voltage rating
700 V
Construction size
22 mm x 58 mm
Color
White
Quantity
10
Utilization category
aR (accompanied semiconductor protection)
Type
High speed fuse
Used with
Finger safe holders/blocks and striker
Frequency rating - min
45 Hz
Pre arc (I2T)
55
Voltage type
AC/DC
Release characteristicOther
Frequency rating - max62 Hz
Fuse size22 x 58 mm
Fuse indicatorWith Indicator
Clearing (I2T)780
ConnectionFerrule end x ferrule end
MaterialCeramic
Watt losses8 W
Fuse shapeCylindrical
Breaking capacity200 A
ClassClass aR
Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging typeStandard

General

UPC
051712510806
Product Length/Depth
58 mm
Product Width
23 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590500630
Product Height23 mm
Product Weight62.6 g
CompliancesCE Marked
