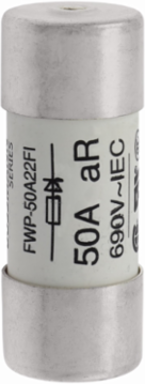

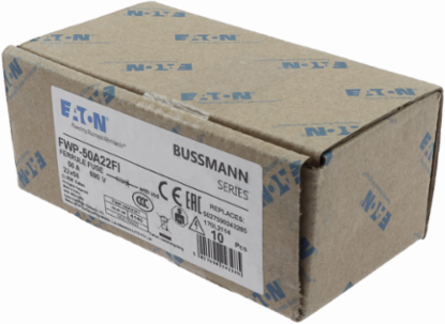

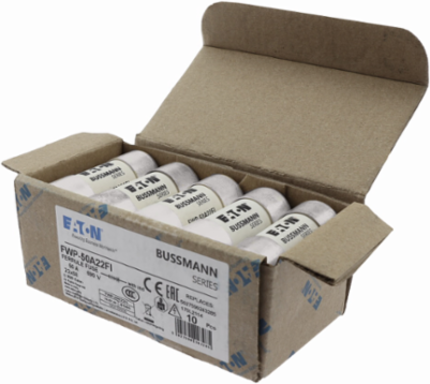

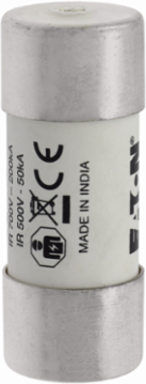

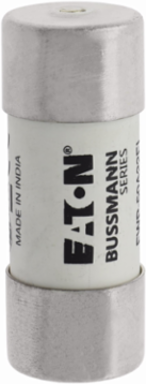

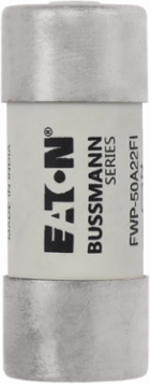

Bussmann FWP-50A22FI High Speed Fuse 50A 700V AC/DC with Indicator, Ceramic, 22 x 58 mm

High Speed Fuse 50A 700V AC/DC with Indicator, Ceramic, 22 x 58 mm
High Speed Fuse 50A 700V AC/DC with Indicator, Ceramic, 22 x 58 mm
High Speed Fuse 50A 700V AC/DC with Indicator, Ceramic, 22 x 58 mm
High Speed Fuse 50A 700V AC/DC with Indicator, Ceramic, 22 x 58 mm
High Speed Fuse 50A 700V AC/DC with Indicator, Ceramic, 22 x 58 mm
High Speed Fuse 50A 700V AC/DC with Indicator, Ceramic, 22 x 58 mm
  • MPN: FWP-50A22FI
  • UPC: 051712542876
  • PPN: BUS-FWP-50A22FI

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$64.13/ EA

Description

High Speed Fuse 50A 700V AC/DC with Indicator, Ceramic, 22 x 58 mm

Specifications

Specifications

Interrupt rating
50 kAIC at 300 Vdc
Amperage Rating
50 A
Fitted with:
Striker
Voltage rating
700 V
Construction size
22 mm x 58 mm
Color
White
Quantity
10
Utilization category
aR (accompanied semiconductor protection)
Type
High speed fuse
Used with
Finger safe holders/blocks and striker
Frequency rating - min
45 Hz
Pre arc (I2T)
155
Voltage type
AC/DC
Release characteristicOther
Frequency rating - max62 Hz
Fuse size22 x 58 mm
Fuse indicatorWith Indicator
Clearing (I2T)2200
ConnectionFerrule end x ferrule end
MaterialCeramic
Watt losses12.5 W
Fuse shapeCylindrical
Breaking capacity200 A
ClassClass aR
Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging typeStandard

General

UPC
051712542876
Product Length/Depth
58 mm
Product Width
23 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590500876
Product Height23 mm
Product Weight63.1 g
CompliancesCE Marked
