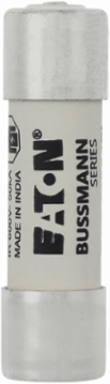

Bussmann FWP-4A14F High Speed Fuse 700V, 4A, 200 kAIC, Ferrule End, Ceramic
- MPN: FWP-4A14F
- UPC: 051712795128
- PPN: BUS-FWP-4A14F
CAD
$48.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 700V, 4A, 200 kAIC, Ferrule End, Ceramic
Documentation & Downloads
Specifications
Key Specifications
| Interrupt rating | 200 kAIC at 300 Vdc |
|---|---|
| Amperage Rating | 4 A |
| Fuse size | 14 x 51 mm |
| Fuse indicator | Non Indicating |
| Clearing (I2T) | 0.23 |
| Connection | Ferrule end x ferrule end |
| Material | Ceramic |
| Watt losses | 3 W |
| Fuse shape | Cylindrical |
| Breaking capacity | 200 A |
| Class | Class aR |
| Application | protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Packaging type | Standard |
| Release characteristic | Other |
|---|---|
| Frequency rating - max | 62 Hz |
| Voltage rating | 700 V |
| Construction size | 14 mm x 51 mm |
| Color | White |
| Quantity | 10 |
| Utilization category | aR (accompanied semiconductor protection) |
| Type | High speed fuse |
| Used with | Finger safe holders/blocks and striker |
| Frequency rating - min | 45 Hz |
| Pre arc (I2T) | 0.1 |
| Voltage type | AC |
General
| UPC | 051712795128 |
|---|---|
| Product Length/Depth | 52 mm |
| Product Width | 15 mm |
| Warranty | Not Applicable |
| Certifications | CSA Certified |
| EAN | 5027590500814 |
|---|---|
| Product Height | 15 mm |
| Product Weight | 20.4 g |
| Compliances | CE Marked |
