Bussmann 280FM High Speed Fuse 280A 690V 200kAIC Blade end x Blade end Stud
- MPN: 280FM
- UPC: 051712833387
- PPN: BUS-280FM
CAD
$613.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

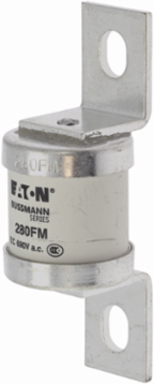

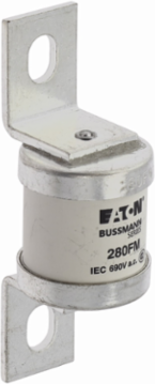

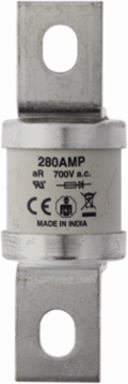

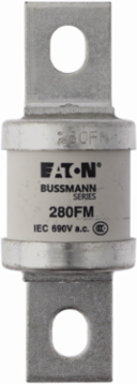

High Speed Fuse 280A 690V 200kAIC Blade end x Blade end Stud
Documentation & Downloads
Specifications
Key Specifications
- Fuse indicator
- None
- Construction size
- Other
- Insulated metal gripping lugs (IMGL)
- No
- Mounting method
- Stud
- Utilization category
- aR (accompanied semiconductor protection)
- Type
- Fuse
- Fuse shape
- Offset bolted tags
- Pre arc (I2T)
- 7000
- Application
- DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
- Packaging type
- Standard
Interrupt rating200 kAIC
Clearing (I2T)30500
ConnectionBlade end x blade end
Amperage Rating280 A
Watt losses48 W
Rated switching capacity200 kA
Breaking capacity200 kA
Voltage rating690 V
Voltage typeAC
General
- UPC
- 051712833387
- Product Length/Depth
- 46 mm
- Product Width
- 115 mm
- Warranty
- Not Applicable
- Certifications
- UL Recognized
EAN5027590039598
Product Height45 mm
Product Weight226 g
CompliancesCE Marked
