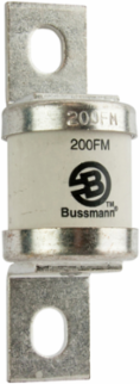

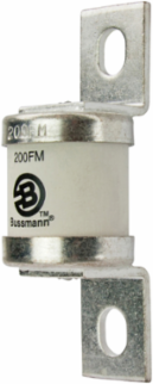

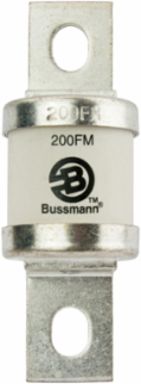

Bussmann 200FM High Speed Fuse 200A 690V AC/DC Width 39MM Length 112MM Breaking Capacity 200KA
- MPN: 200FM
- UPC: 051712832199
- PPN: BUS-200FM
CAD
$572.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 200A 690V AC/DC Width 39MM Length 112MM Breaking Capacity 200KA
Documentation & Downloads
Specifications
Key Specifications
| Height | 41 MM |
|---|---|
| Width | 39 MM |
| Type | Fuse |
| Voltage Rating | 240 Vac, 150 Vdc |
| Amperage Rating | 200A |
| Interrupt Rating | 200 kAIC |
| Construction Size | Other |
| Packaging Type | Standard |
| Clearing (I2T) | 10500 |
| Fuse Indicator | None |
| Pre Arc (I2T) | 2600 |
| Watt Losses | 40 |
| Length | 112 MM |
|---|---|
| Weight | 224 G |
| Application | protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Voltage Rating Numeric | 690 V |
| Amperage Rating Numeric | 200 A |
| Connection | Blade end X blade end |
| Mounting | Stud |
| Breaking Capacity | 200 KA |
| Fuse Shape | offset bolted tags |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Voltage Type | AC/DC |
