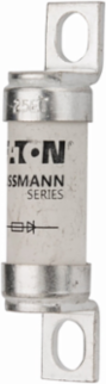

Bussmann 25ET High Speed Fuse 25 A, AC 690 V, DC 500 V, BS88, 19 x 77 mm, UL Recognized
- MPN: 25ET
- UPC: 051712831109
- PPN: BUS-25ET
CAD
$150.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 25 A, AC 690 V, DC 500 V, BS88, 19 x 77 mm, UL Recognized
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | None |
|---|---|
| Construction size | Other |
| Insulated metal gripping lugs (IMGL) | No |
| Mounting method | Stud |
| Utilization category | Other |
| Type | Fuse |
| Fuse shape | Offset bolted tags |
| Pre arc (I2T) | 25 |
| Application | protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Interrupt rating | 200 kAIC |
|---|---|
| Clearing (I2T) | 150 |
| Connection | Blade end x blade end |
| Amperage Rating | 25 A |
| Watt losses | 7 W |
| Rated switching capacity | 200 kA |
| Breaking capacity | 200 kA |
| Voltage rating | 690 V |
| Voltage type | AC/DC |
General
| UPC | 051712831109 |
|---|---|
| Product Length/Depth | 76 mm |
| Product Width | 20 mm |
| Compliances | RoHS Compliant |
| EAN | 5027590470131 |
|---|---|
| Product Height | 20 mm |
| Product Weight | 38.4 g |
| Certifications | UL Recognized |
