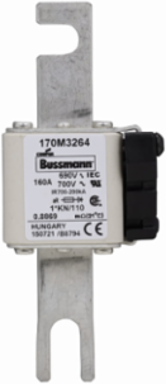

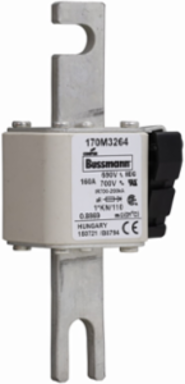

Bussmann 170M3264 High-Speed Square Body Fuse, 160 Amp, 1250V (IEC), 200 kAIC, DIN Mounting
- MPN: 170M3264
- UPC: 051712255486
- PPN: BUS-170M3264
CAD
$594.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High-Speed Square Body Fuse, 160 Amp, 1250V (IEC), 200 kAIC, DIN Mounting
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Other |
|---|---|
| Clearing loss | 30 |
| Clearing (I2T) | 7500 at 660 V |
| Connection | Blade end x blade end |
| Amperage Rating | 160 A |
| Type | Fuse |
| Class | Class aR |
| Voltage rating | 690 V |
| Voltage type | AC |
| Interrupt rating | 200 kAIC |
|---|---|
| Construction size | Other |
| Insulated metal gripping lugs (IMGL) | No |
| Mounting method | DIN 43 620 |
| Utilization category | aR (accompanied semiconductor protection) |
| Fuse shape | Square body, slotted center bolted tags |
| Pre arc (I2T) | 1100 |
| Application | semiconductor protection |
| Packaging type | Standard |
General
| UPC | 051712255486 |
|---|---|
| Product Length/Depth | 305 mm |
| Product Width | 145 mm |
| Warranty | Not Applicable |
| Certifications | IEC Rated |
| EAN | 5027590446709 |
|---|---|
| Product Height | 65 mm |
| Product Weight | 340.5 g |
| Compliances | CE Marked |
