Bussman

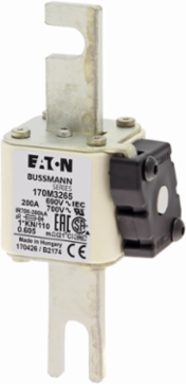

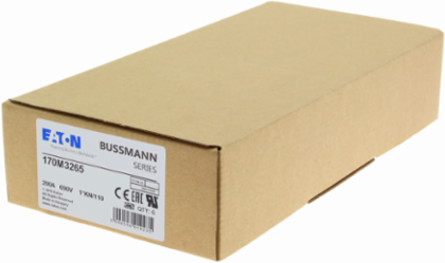

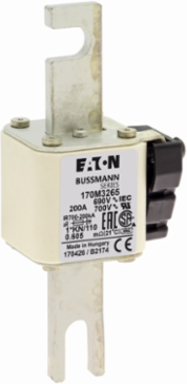

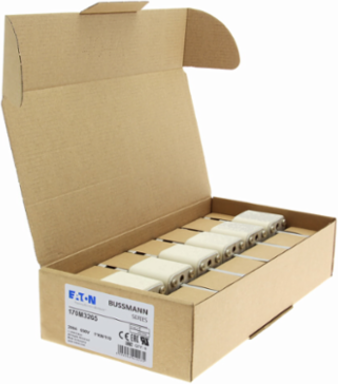

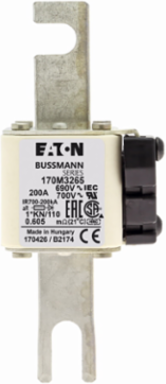

Bussman 170M3265 High-Speed Square Body Fuse 200A 1250V (IEC) 1300V (UL) 200 kAIC

High-Speed Square Body Fuse 200A 1250V (IEC) 1300V (UL) 200 kAIC
High-Speed Square Body Fuse 200A 1250V (IEC) 1300V (UL) 200 kAIC
High-Speed Square Body Fuse 200A 1250V (IEC) 1300V (UL) 200 kAIC
High-Speed Square Body Fuse 200A 1250V (IEC) 1300V (UL) 200 kAIC
High-Speed Square Body Fuse 200A 1250V (IEC) 1300V (UL) 200 kAIC
  • MPN: 170M3265
  • UPC: 051712255493
  • PPN: BUS-170M3265

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$594.77/ EA

Specifications

General

UPC
051712255493
Product Length/Depth
305 mm
Product Width
145 mm
Warranty
Not Applicable
Certifications
IEC Rated
EAN5027590446716
Product Height65 mm
Product Weight340.5 g
CompliancesCE Marked

Specifications

Fuse indicator
Other
Clearing loss
35
Clearing (I2T)
15000 at 660 V
Connection
Blade end x blade end
Amperage Rating
200 A
Type
Fuse
Class
Class aR
Voltage rating
690 V
Voltage type
AC
Interrupt rating200 kAIC
Construction sizeOther
Insulated metal gripping lugs (IMGL)No
Mounting methodDIN 43 620
Utilization categoryaR (accompanied semiconductor protection)
Fuse shapeSquare body, slotted center bolted tags
Pre arc (I2T)2200
Applicationsemiconductor protection
Packaging typeStandard
