Bussman

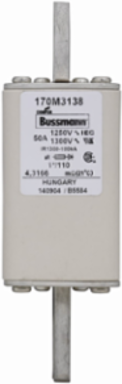

Bussman 170M3138 High-Speed Square Body Fuse 50A 1250V AC 100 kAIC Class aR

High-Speed Square Body Fuse 50A 1250V AC 100 kAIC Class aR
  • MPN: 170M3138
  • UPC: 051712254939
  • PPN: BUS-170M3138

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$665.58/ EA

Specifications

Specifications

Fuse indicator
Top fuse status indicator
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Amperage Rating
50 A
Watt losses
15 W
Fuse shape
Square body, slotted center bolted tags
Pre arc (I2T)
135
Application
semiconductor protection
Packaging type
Standard
Interrupt rating100 kAIC
Clearing (I2T)815 at 1000 V, 1100 at 1250 V
Mounting methodDIN 43 620
Utilization categoryaR (accompanied semiconductor protection)
TypeFuse
ClassClass aR
Voltage rating1250 V
Voltage typeAC

General

UPC
051712254939
Product Length/Depth
305 mm
Product Width
145 mm
Warranty
Not Applicable
Certifications
IEC Rated
EAN5027590444040
Product Height65 mm
Product Weight.071 g
CompliancesCE Marked

Downloads
