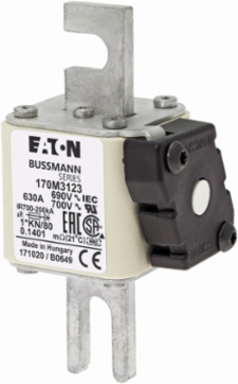

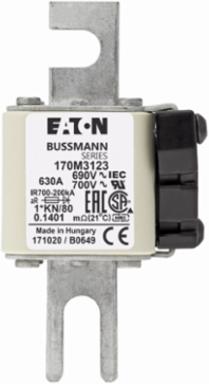

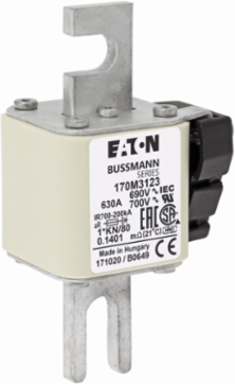

Bussman 170M3123 High-Speed Square Body Fuse 1250V IEC, 630A, 200 kAIC, Class aR

High-Speed Square Body Fuse 1250V IEC, 630A, 200 kAIC, Class aR - https://media.province-electric.com/csv_eaton/2022q1/images/medium/d828cf73dd1f88248bde6c69e05205375028a9f0-medium.png

High-Speed Square Body Fuse 1250V IEC, 630A, 200 kAIC, Class aR - https://media.province-electric.com/csv_eaton/2022q1/images/medium/bd59bf245749d92eb1c7d95d4ca6fce42c72ae33-medium.png

High-Speed Square Body Fuse 1250V IEC, 630A, 200 kAIC, Class aR - https://media.province-electric.com/csv_eaton/2022q1/images/medium/a4909deddf9bd11ee054af64a4817c1c622739cd-medium.png

High-Speed Square Body Fuse 1250V IEC, 630A, 200 kAIC, Class aR - https://media.province-electric.com/csv_eaton/2022q1/images/medium/454be143ab453946bffc8571b67efbb326fe3a89-medium.png

High-Speed Square Body Fuse 1250V IEC, 630A, 200 kAIC, Class aR

Bussman 170M3123 High-Speed Square Body Fuse 1250V IEC, 630A, 200 kAIC, Class aR

MPN: 170M3123
UPC: 051712254922
PPN: BUS-170M3123

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$676.67/ EA

Qty:

Loading add to cart quantity...

Specifications

Fuse indicator: Other

Clearing loss: 80

Clearing (I2T): 325000 at 660 V

Connection: Blade end x blade end

Amperage Rating: 630 A

Type: Fuse

Class: Class aR

Voltage rating: 690 V

Voltage type: AC

Interrupt rating200 kAIC

Construction sizeOther

Insulated metal gripping lugs (IMGL)No

Mounting methodDIN 43 620

Utilization categoryaR (accompanied semiconductor protection)

Fuse shapeSquare body, slotted center bolted tags

Pre arc (I2T)48500

Applicationsemiconductor protection

Packaging typeStandard

General

UPC: 051712254922

Product Length/Depth: 290 mm

Product Width: 142 mm

Warranty: Not Applicable

Certifications: IEC Rated

EAN5027590444033

Product Height62 mm

Product Weight319 g

CompliancesCE Marked
