Bussmann

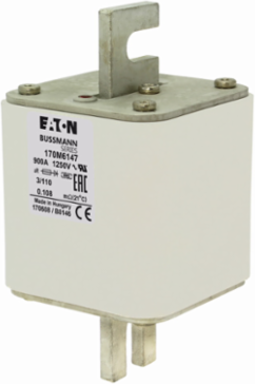

Bussmann 170M6147 High-Speed Square Body Fuse 1250V, 900A, 100 kAIC, Class aR, DIN 43 620

High-Speed Square Body Fuse 1250V, 900A, 100 kAIC, Class aR, DIN 43 620
  • MPN: 170M6147
  • UPC: 051712262996
  • PPN: BUS-170M6147

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1947.38/ EA

Description

High-Speed Square Body Fuse 1250V, 900A, 100 kAIC, Class aR, DIN 43 620

Specifications

Specifications

Fuse indicator
Top fuse status indicator
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Amperage Rating
900 A
Watt losses
130 W
Fuse shape
Square body, slotted center bolted tags
Pre arc (I2T)
305000
Application
semiconductor protection
Packaging type
Standard
Interrupt rating100 kAIC
Clearing (I2T)1500000 at 1000 V, 1900000 at 1250 V
Mounting methodDIN 43 620
Utilization categoryaR (accompanied semiconductor protection)
TypeFuse
ClassClass aR
Voltage rating1250 V
Voltage typeAC

General

UPC
051712262996
Product Length/Depth
168 mm
Product Width
95 mm
Warranty
Not Applicable
Certifications
IEC Rated
EAN5996516017937
Product Height76 mm
Product Weight1319 g
CompliancesCE Marked
