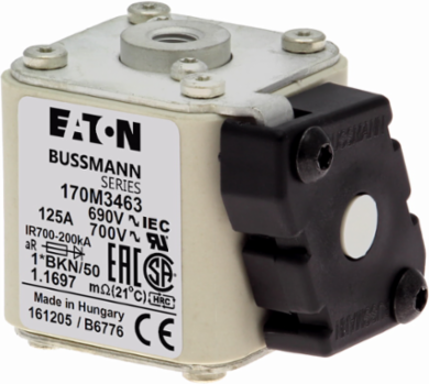

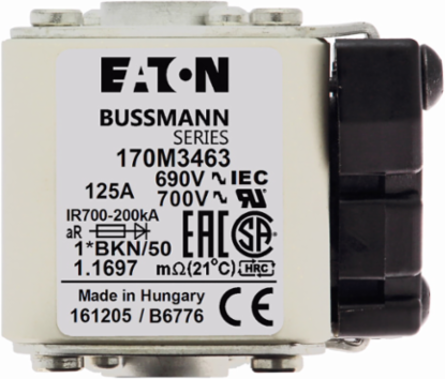

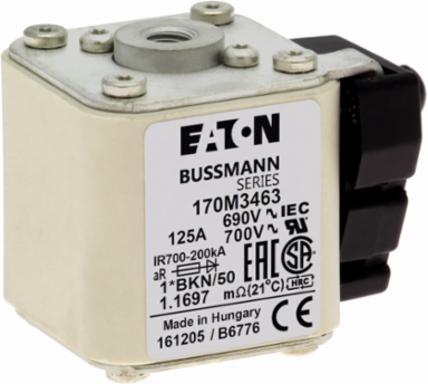

Bussmann 170M3463 High Speed Square Body Fuse 125A 200 kAIC AC Class aR 690V Flush Contacts
- MPN: 170M3463
- UPC: 051712799959
- PPN: BUS-170M3463
CAD
$478.48
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 125A 200 kAIC AC Class aR 690V Flush Contacts
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Other |
|---|---|
| Construction size | Other |
| Insulated metal gripping lugs (IMGL) | No |
| Amperage Rating | 125 A |
| Watt losses | 30 W |
| Fuse shape | Square body, flush end contacts |
| Pre arc (I2T) | 550 |
| Application | semiconductor protection |
| Packaging type | Standard |
| Interrupt rating | 200 kAIC |
|---|---|
| Clearing (I2T) | 3700 at 660 V |
| Mounting method | Flush |
| Utilization category | aR (accompanied semiconductor protection) |
| Type | Fuse |
| Class | Class aR |
| Voltage rating | 690 V |
| Voltage type | AC |
General
| UPC | 051712799959 |
|---|---|
| Product Length/Depth | 193 mm |
| Product Width | 106 mm |
| Warranty | Not Applicable |
| Certifications | UL Recognized |
| EAN | 5027590447881 |
|---|---|
| Product Height | 47 mm |
| Product Weight | 265.1666667 g |
| Compliances | CE Marked |
