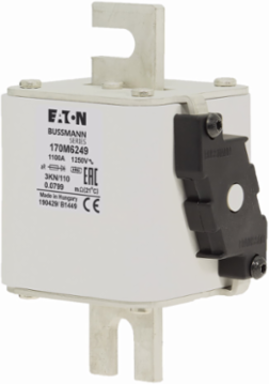

Bussmann 170M6249 High Speed Square Body Fuse 1100A, 700V UL, 600V IEC, 100 kAIC, DIN 43 620
- MPN: 170M6249
- UPC: 051712793636
- PPN: BUS-170M6249
CAD
$1740.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 1100A, 700V UL, 600V IEC, 100 kAIC, DIN 43 620
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Other |
|---|---|
| Construction size | Other |
| Insulated metal gripping lugs (IMGL) | No |
| Amperage Rating | 1100 A |
| Watt losses | 140 W |
| Fuse shape | Square body, slotted center bolted tags |
| Pre arc (I2T) | 575000 |
| Application | semiconductor protection |
| Packaging type | Standard |
| Interrupt rating | 100 kAIC |
|---|---|
| Clearing (I2T) | 2800000 at 1000 V, 3600000 at 1250 V |
| Mounting method | DIN 43 620 |
| Utilization category | aR (accompanied semiconductor protection) |
| Type | Fuse |
| Class | Class aR |
| Voltage rating | 1250 V |
| Voltage type | AC |
General
| UPC | 051712793636 |
|---|---|
| Product Length/Depth | 168 mm |
| Product Width | 95 mm |
| Warranty | Not Applicable |
| Certifications | IEC Rated |
| EAN | 5996516018590 |
|---|---|
| Product Height | 76 mm |
| Product Weight | 961 g |
| Compliances | CE Marked |
