Bussman

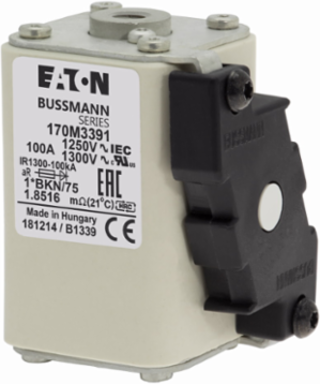

Bussman 170M3391 High Speed Square Body Fuse 700V, 100A, 100 kAIC, Flush Contacts

High Speed Square Body Fuse 700V, 100A, 100 kAIC, Flush Contacts
  • MPN: 170M3391
  • UPC: 051712255882
  • PPN: BUS-170M3391

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$799.73/ EA

Specifications

General

UPC
051712255882
Product Length/Depth
96 mm
Product Width
170 mm
Warranty
Not Applicable
Certifications
IEC Rated
EAN5027590447416
Product Height50 mm
Product Weight180 g
CompliancesCE Marked

Specifications

Fuse indicator
Other
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Amperage Rating
100 A
Watt losses
30 W
Fuse shape
Square body, flush end contacts
Pre arc (I2T)
750
Application
semiconductor protection
Packaging type
Standard
Interrupt rating100 kAIC
Clearing (I2T)4450 at 1000 V, 5950 at 1250 V
Mounting methodFlush
Utilization categoryaR (accompanied semiconductor protection)
TypeFuse
ClassClass aR
Voltage rating1250 V
Voltage typeAC
