Bussmann

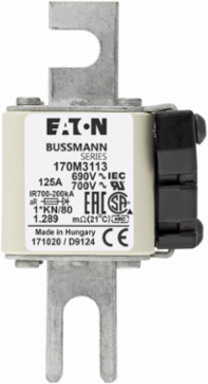

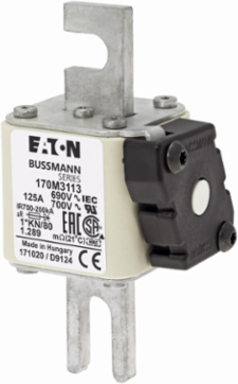

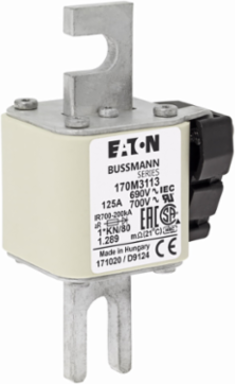

Bussmann 170M3113 Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 125A, 200 kAIC, Other, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3113

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 125A, 200 kAIC, Other, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3113
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 125A, 200 kAIC, Other, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3113
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 125A, 200 kAIC, Other, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3113
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 125A, 200 kAIC, Other, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3113
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 125A, 200 kAIC, Other, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3113
  • MPN: 170M3113
  • UPC: 051712254847
  • PPN: BUS-170M3113

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$538.72/ EA

Description

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 125A, 200 kAIC, Other, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3113

Specifications

Specifications

Fuse indicator
Other
Clearing loss
26
Clearing (I2T)
3700 at 660 V
Connection
Blade end x blade end
Amperage Rating
125 A
Type
Fuse
Class
Class aR
Voltage rating
690 V
Voltage type
AC
Interrupt rating200 kAIC
Construction sizeOther
Insulated metal gripping lugs (IMGL)No
Mounting methodDIN 43 620
Utilization categoryaR (accompanied semiconductor protection)
Fuse shapeSquare body, slotted center bolted tags
Pre arc (I2T)550
Applicationsemiconductor protection
Packaging typeStandard

General

UPC
051712254847
Product Length/Depth
305 mm
Product Width
145 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590443920
Product Height65 mm
Product Weight320.8333333 g
CompliancesCE Marked
