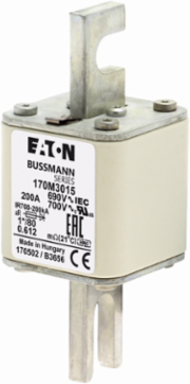

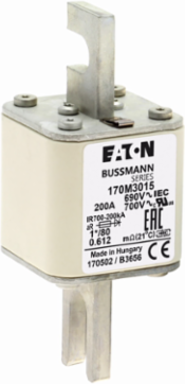

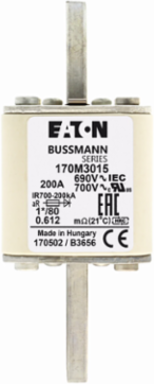

Bussmann 170M3015 High Speed Square Body Fuse, 690V, 200A, 200 kAIC, Class aR
- MPN: 170M3015
- UPC: 051712799812
- PPN: BUS-170M3015
CAD
$402.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High Speed Square Body Fuse, 690V, 200A, 200 kAIC, Class aR
Documentation & Downloads
Specifications
Key Specifications
- Fuse indicator
- Top fuse status indicator
- Clearing loss
- 35
- Clearing (I2T)
- 15000 at 660 V
- Connection
- Blade end x blade end
- Amperage Rating
- 200 A
- Type
- Fuse
- Class
- Class aR
- Voltage rating
- 690 V
- Voltage type
- AC
Interrupt rating200 kAIC
Construction sizeOther
Insulated metal gripping lugs (IMGL)No
Mounting methodDIN 43 620
Utilization categoryaR (accompanied semiconductor protection)
Fuse shapeSquare body, slotted center bolted tags
Pre arc (I2T)2200
Applicationsemiconductor protection
Packaging typeStandard
General
- UPC
- 051712799812
- Product Length/Depth
- 305 mm
- Product Width
- 145 mm
- Warranty
- Not Applicable
- Certifications
- IEC Rated
EAN5027590443609
Product Height65 mm
Product Weight352.6666667 g
CompliancesCE Marked
