Bussman

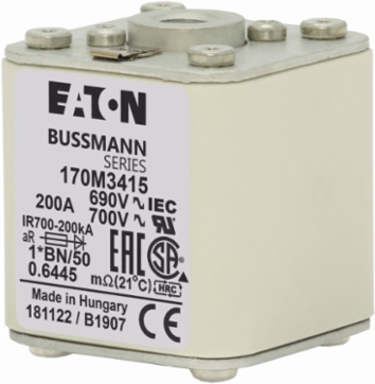

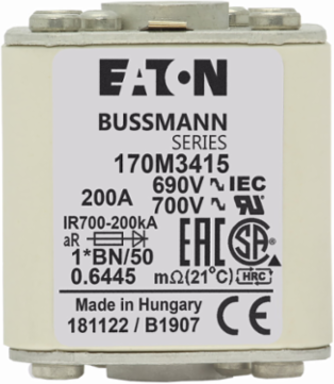

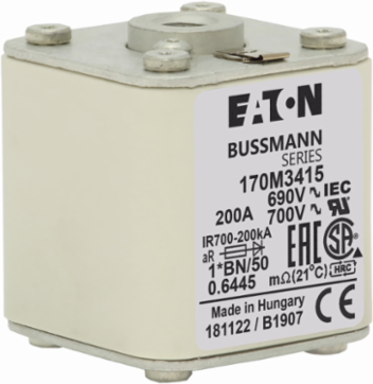

Bussman 170M3415 High Speed Square Body Fuse, 200A, 690V, 200 kAIC, Top Fuse Indicator

High Speed Square Body Fuse, 200A, 690V, 200 kAIC, Top Fuse Indicator
High Speed Square Body Fuse, 200A, 690V, 200 kAIC, Top Fuse Indicator
High Speed Square Body Fuse, 200A, 690V, 200 kAIC, Top Fuse Indicator
High Speed Square Body Fuse, 200A, 690V, 200 kAIC, Top Fuse Indicator
  • MPN: 170M3415
  • UPC: 051712799546
  • PPN: BUS-170M3415

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$422.78/ EA

Specifications

General

UPC
051712799546
Product Length/Depth
155 mm
Product Width
90 mm
Warranty
Not Applicable
Certifications
IEC Rated
EAN5027590447614
Product Height45 mm
Product Weight245.8333333 g
CompliancesCE Marked

Specifications

Fuse indicator
Top fuse status indicator
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Amperage Rating
200 A
Watt losses
41 W
Fuse shape
Square body, flush end contacts
Pre arc (I2T)
2200
Application
semiconductor protection
Packaging type
Standard
Interrupt rating200 kAIC
Clearing (I2T)15000 at 660 V
Mounting methodFlush
Utilization categoryaR (accompanied semiconductor protection)
TypeFuse
ClassClass aR
Voltage rating690 V
Voltage typeAC
