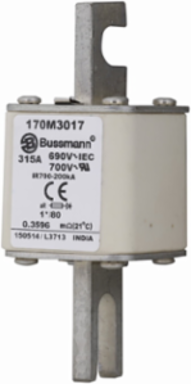

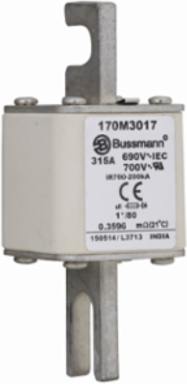

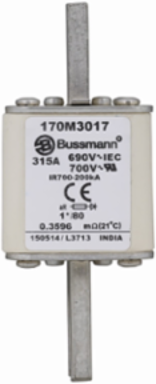

Bussmann 170M3017 Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 315A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3017

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 315A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3017
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 315A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3017
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 315A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3017
  • MPN: 170M3017
  • UPC: 051712799829
  • PPN: BUS-170M3017

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$367.32/ EA

Description

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 315A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3017

Specifications

Specifications

Fuse indicator
Top fuse status indicator
Clearing loss
50
Clearing (I2T)
46500 at 660 V
Connection
Blade end x blade end
Amperage Rating
315 A
Type
Fuse
Class
Class aR
Voltage rating
690 V
Voltage type
AC
Interrupt rating200 kAIC
Construction sizeOther
Insulated metal gripping lugs (IMGL)No
Mounting methodDIN 43 620
Utilization categoryaR (accompanied semiconductor protection)
Fuse shapeSquare body, slotted center bolted tags
Pre arc (I2T)7000
Applicationsemiconductor protection
Packaging typeStandard

General

UPC
051712799829
Product Length/Depth
305 mm
Product Width
145 mm
Warranty
Not Applicable
Certifications
IEC Rated
EAN5027590443630
Product Height65 mm
Product Weight307.8333333 g
CompliancesCE Marked
