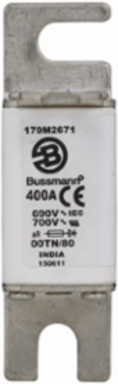

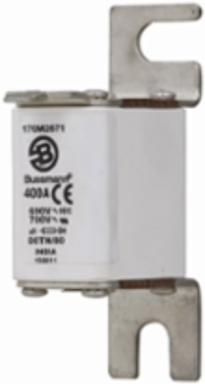

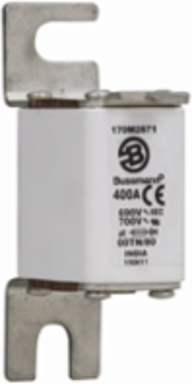

Bussmann 170M2671 High Speed Square Body Fuse 400A 690V AC Class aR 200 kAIC
- MPN: 170M2671
- UPC: 051712792141
- PPN: BUS-170M2671
CAD
$458.95
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 400A 690V AC Class aR 200 kAIC
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Other |
|---|---|
| Construction size | Other |
| Insulated metal gripping lugs (IMGL) | No |
| Mounting method | DIN 43 620 |
| Utilization category | aR (accompanied semiconductor protection) |
| Type | Fuse |
| Class | Class aR |
| Voltage rating | 690 V |
| Voltage type | AC |
| Interrupt rating | 200 kAIC |
|---|---|
| Clearing (I2T) | 125000 at 660 V |
| Connection | Blade end x blade end |
| Amperage Rating | 400 A |
| Watt losses | 70 W |
| Fuse shape | Square body, slotted offset bolted tags |
| Pre arc (I2T) | 18000 |
| Application | semiconductor protection |
| Packaging type | Standard |
General
| UPC | 051712792141 |
|---|---|
| Product Length/Depth | 100 mm |
| Product Width | 30 mm |
| Warranty | Not Applicable |
| Certifications | UL Recognized |
| EAN | 5027590442497 |
|---|---|
| Product Height | 67 mm |
| Product Weight | 236.3333333 g |
| Compliances | CE Marked |
