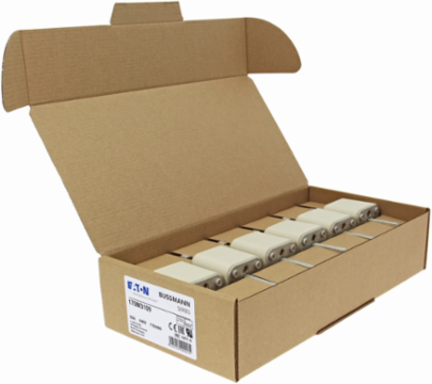

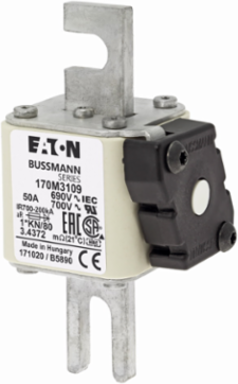

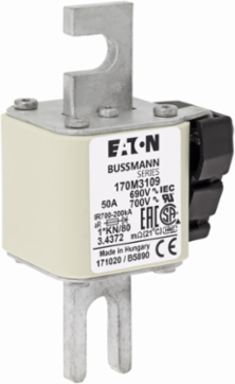

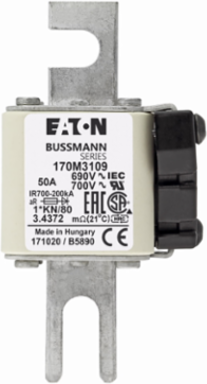

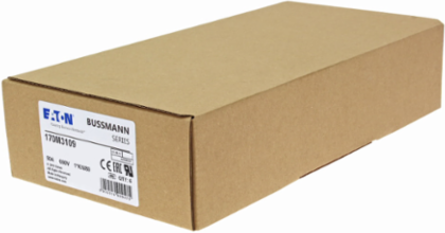

Bussmann 170M3109 High Speed Square Body Fuse 50A, 690V, 200 kAIC, Blade End x Blade End
- MPN: 170M3109
- UPC: 051712254809
- PPN: BUS-170M3109
CAD
$538.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 50A, 690V, 200 kAIC, Blade End x Blade End
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Other |
|---|---|
| Clearing loss | 11 |
| Clearing (I2T) | 515 at 660 V |
| Connection | Blade end x blade end |
| Amperage Rating | 50 A |
| Type | Fuse |
| Class | Class aR |
| Voltage rating | 690 V |
| Voltage type | AC |
| Interrupt rating | 200 kAIC |
|---|---|
| Construction size | Other |
| Insulated metal gripping lugs (IMGL) | No |
| Mounting method | DIN 43 620 |
| Utilization category | aR (accompanied semiconductor protection) |
| Fuse shape | Square body, slotted center bolted tags |
| Pre arc (I2T) | 77 |
| Application | semiconductor protection |
| Packaging type | Standard |
General
| UPC | 051712254809 |
|---|---|
| Product Length/Depth | 104 mm |
| Product Width | 145 mm |
| Warranty | Not Applicable |
| Certifications | IEC Rated |
| EAN | 5027590443876 |
|---|---|
| Product Height | 45 mm |
| Product Weight | .292 g |
| Compliances | CE Marked |
