Bussmann

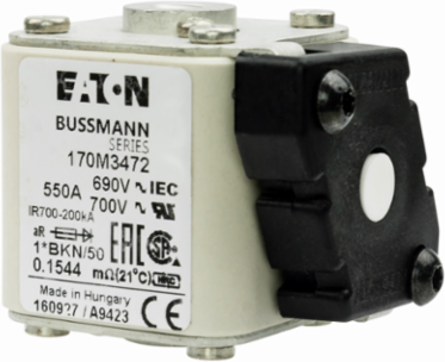

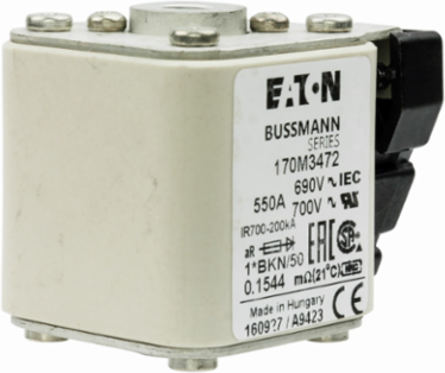

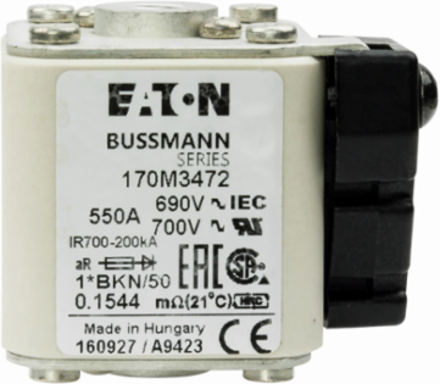

Bussmann 170M3472 Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 550A, 200 kAIC, Other, Fuse, Class aR, Flush - 170M3472

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 550A, 200 kAIC, Other, Fuse, Class aR, Flush - 170M3472
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 550A, 200 kAIC, Other, Fuse, Class aR, Flush - 170M3472
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 550A, 200 kAIC, Other, Fuse, Class aR, Flush - 170M3472
  • MPN: 170M3472
  • UPC: 051712815154
  • PPN: BUS-170M3472

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$664.13/ EA

Description

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 550A, 200 kAIC, Other, Fuse, Class aR, Flush - 170M3472

Specifications

General

UPC
051712815154
Product Length/Depth
60 mm
Product Width
43 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590448277
Product Height50 mm
Product Weight264.6666667 g
CompliancesCE Marked

Specifications

Fuse indicator
Other
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Amperage Rating
550 A
Watt losses
89 W
Fuse shape
Square body, flush end contacts
Pre arc (I2T)
34000
Application
semiconductor protection
Packaging type
Standard
Interrupt rating200 kAIC
Clearing (I2T)230000 at 660 V
Mounting methodFlush
Utilization categoryaR (accompanied semiconductor protection)
TypeFuse
ClassClass aR
Voltage rating690 V
Voltage typeAC
