Bussman

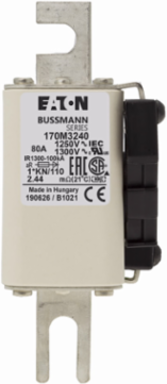

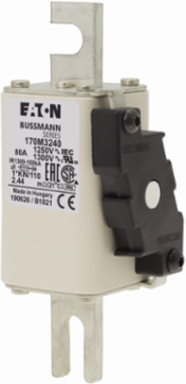

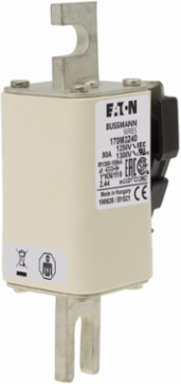

Bussman 170M3240 High Speed Square Body Fuse 80A 700V/690V 100 kAIC DIN 43 620

High Speed Square Body Fuse 80A 700V/690V 100 kAIC DIN 43 620
High Speed Square Body Fuse 80A 700V/690V 100 kAIC DIN 43 620
High Speed Square Body Fuse 80A 700V/690V 100 kAIC DIN 43 620
High Speed Square Body Fuse 80A 700V/690V 100 kAIC DIN 43 620
High Speed Square Body Fuse 80A 700V/690V 100 kAIC DIN 43 620
  • MPN: 170M3240
  • UPC: 051712255332
  • PPN: BUS-170M3240

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$773.40/ EA

Specifications

Specifications

Fuse indicator
Other
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Amperage Rating
80 A
Watt losses
25 W
Fuse shape
Square body, slotted center bolted tags
Pre arc (I2T)
420
Application
semiconductor protection
Packaging type
Standard
Interrupt rating100 kAIC
Clearing (I2T)2500 at 1000 V, 3350 at 1250 V
Mounting methodDIN 43 620
Utilization categoryaR (accompanied semiconductor protection)
TypeFuse
ClassClass aR
Voltage rating1250 V
Voltage typeAC

General

UPC
051712255332
Product Length/Depth
305 mm
Product Width
145 mm
Warranty
Not Applicable
Certifications
IEC Rated
EAN5027590445849
Product Height65 mm
Product Weight348 g
CompliancesCE Marked
