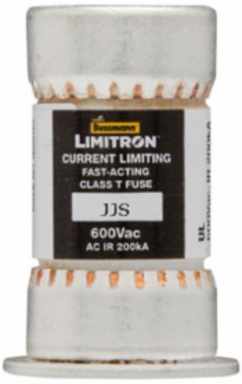

Bussmann JJS-35 Fast Acting Current-Limiting Fuse 35 A, Class T, 200 kAIC, Small Footprint
- MPN: JJS-35
- UPC: 051712628358
- PPN: BUS-JJS-35
CAD
$36.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fast Acting Current-Limiting Fuse 35 A, Class T, 200 kAIC, Small Footprint
Features
- Boasting a massive 200,000-amp interrupting capacity (AIC) at 600V AC, this single-element cartridge fuse safely breaks intense thermal energy spikes without exploding or rupturing. This premium fault-handling performance guarantees complete compliance with National Electrical Code (NEC®) Section 110.9 regulations, ensuring sub-panels, large apartment complexes, and high-capacity commercial service entrances pass strict local structural safety audits.
- Featuring a space-saving footprint measuring just 0.81 inches in diameter by 1.56 inches in length, the JJS-35 delivers heavy-duty circuit protection in a package less than half the physical size of standard Class R or Class J components. This physical reduction allows system layout designers and industrial panel builders to specify smaller, cost-effective disconnect enclosures, fuse blocks, and multi-family meter stacks without sacrificing high-voltage performance.
- Finished with high-conductivity ferrule end-to-end terminals, this 35-amp cartridge drops directly into standard Class T holder blocks (such as the Bussmann T60060 series) or modular disconnect switches. The tight tolerances of the cylindrical end construction establish a low-resistance interface, eliminating localized heating at the contact point to maximize energy efficiency across your entire distribution setup.
Documentation & Downloads
Specifications
Additional
- Amperage
- 35 A
- Interrupting Rating
- 200 kAIC at 600 Vac
- Current Limitation
- 10X better current limitation
- Height
- .56 in
- Weight
- .5 lb
- Fuse Indicator
- Non-indicating
- Compliance
- cULus Listed, UL 248-15, CSA C22.2 No. 248.15, CE, RoHS
Voltage600 V
Fuse TypeClass T
Length1.5 in
Width.56 in
ConnectionFerrule end x ferrule end
MaterialNot specified
BrandNot specified
