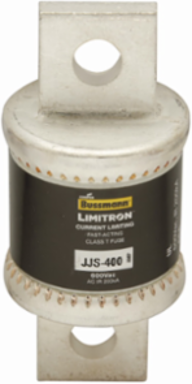

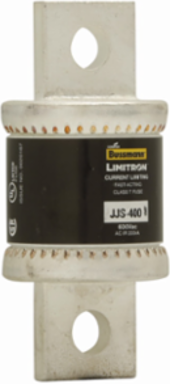

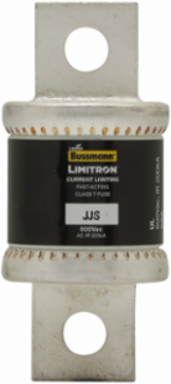

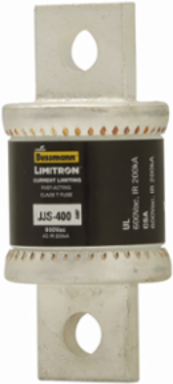

Bussmann JJS-400 Current-Limiting Fuse, 400 A, Class T, 600 V, 200 kAIC, Small Footprint
- MPN: JJS-400
- UPC: 051712628044
- PPN: BUS-JJS-400
CAD
$200.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann series JJS fuse, Current-limiting, Small footprint, VFD line protection, 400 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 1, 600 V.
Features
- Equipped with advanced Limitron T-Tron technology, this 400 Amp current-limiting fuse provides a very fast-acting response to overcurrent conditions.
- Designed with a space-saving, small footprint profile measuring just 3.63 inches in length and 1 inch in diameter, this compact cartridge element maximizes available enclosure space. Its ultra-compact Class T design provides the exact same high-amperage protection as bulky Class R or Class J options, allowing you to downsize your disconnect switches, meter stacks, and panelboard footprints.
- Constructed from high-grade melamine for superior arc-quenching and thermal stability, this non-indicating single-element fuse meets rigid UL 248-15, CSA Class 1422-02, CE, and RoHS standards. These certifications eliminate safety compliance objections from project inspectors, ensuring reliable, long-term operation in commercial, multi-family residential, and industrial applications.
Documentation & Downloads
Specifications
Additional
- Amperage
- 400 A
- Interrupting Capacity
- 200 kAIC at 600 Vac
- Product Length/Depth
- 3.63 in
- Product Height
- 1 in
- Connection
- Bolted blade end x bolted blade end
- Compliances
- CE Marked; RoHS Compliant
Voltage600 V
ClassClass T
Product Width1 in
Product Weight0.5 lb
Fuse IndicatorNon-indicating
