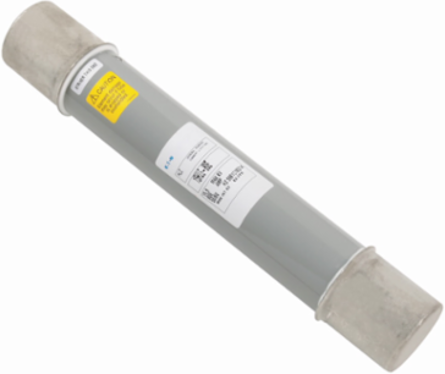

Bussmann MV055F1DAX100E Medium Voltage Fuse 5.5 kV 100A 50 kAIC Class E Ferrule End 3 IN Diameter
- MPN: MV055F1DAX100E
- UPC: 051712269667
- PPN: BUS-MV055F1DAX100E
CAD
$2627.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Medium Voltage Fuse 5.5 kV 100A 50 kAIC Class E Ferrule End 3 IN Diameter
Specifications
Key Specifications
| Fuse Indicator | Non Indicating |
|---|---|
| Element | Silver ribbon |
| Material Type | Fiberglass tube |
| Barrels | 1 |
| Class | Class E |
| Application | Feeder circuit protection, metal enclosed switchgear, transformer primary protection, voltage switches |
| Packaging Type | Standard |
| Interrupt Rating | 50 kAIC |
|---|---|
| Connection | Ferrule end X ferrule end |
| Amperage Rating | 100A |
| Type | Current limiting |
| Voltage Rating | 5.5 kV |
| Diameter | 3 IN |
General
| UPC | 051712269667 |
|---|---|
| Product Length/Depth | 3 IN |
| Product Width | 3 IN |
| Warranty | Not Applicable |
| Certifications | ANSI |
| EAN | 5027590243773 |
|---|---|
| Product Height | 15.86 IN |
| Product Weight | 8.5 LB |
| Compliances | Contact factory |
