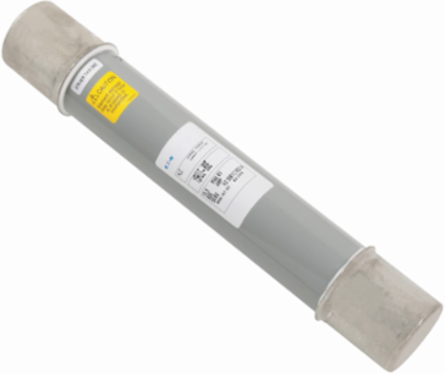

Bussmann MV155F2DBX125E Medium Voltage Fuse, 125A, 15.5 kV, 50 kAIC, Fiberglass Tube, 2 Barrels, 0.75 Inch Diameter
- MPN: MV155F2DBX125E
- UPC: 051712269094
- PPN: BUS-MV155F2DBX125E
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Medium Voltage Fuse, 125A, 15.5 kV, 50 kAIC, Fiberglass Tube, 2 Barrels, 0.75 Inch Diameter
Specifications
Key Specifications
| Fuse Indicator | Non Indicating |
|---|---|
| Element | Silver ribbon |
| Material Type | Fiberglass tube |
| Barrels | 2 |
| Class | Class E |
| Application | Feeder circuit protection, metal enclosed switchgear, transformer primary protection, voltage switches |
| Packaging Type | Standard |
| Interrupt Rating | 50 kAIC |
|---|---|
| Connection | Ferrule end X ferrule end |
| Amperage Rating | 125A |
| Type | Current limiting |
| Voltage Rating | 15.5 kV |
| Diameter | .75 IN |
General
| UPC | 051712269094 |
|---|---|
| Product Height | 23 IN |
| Product Weight | .1 LB |
| Compliances | Contact factory |
| Product Length/Depth | .75 IN |
|---|---|
| Product Width | .75 IN |
| Warranty | Not Applicable |
| Certifications | ANSI |
