Crouse-Hinds CPS152R Arktite Receptacle 20A 1 HP Brass Contacts Delayed Action Circuit Breaking
- MPN: CPS152R
- UPC: 782274182209
- PPN: CRH-CPS152R
CAD
$1293.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

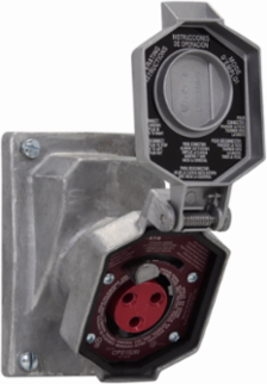

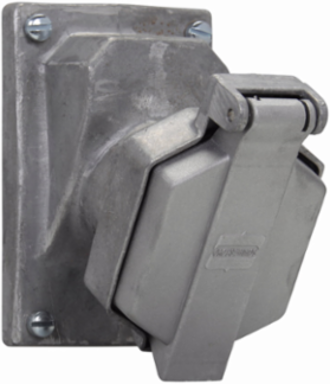

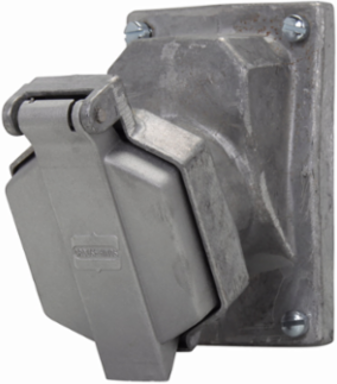

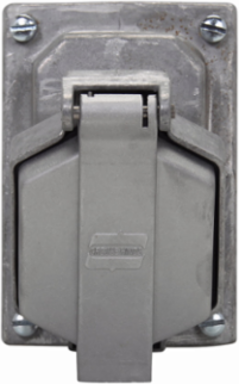

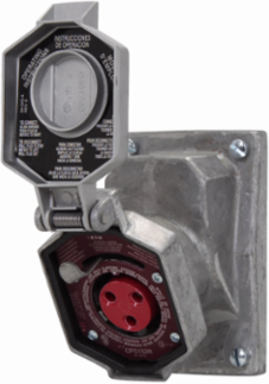

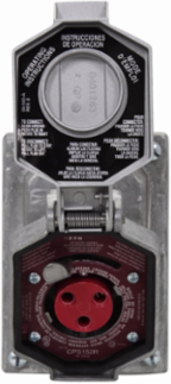

Arktite Receptacle 20A 1 HP Brass Contacts Delayed Action Circuit Breaking
Documentation & Downloads
Specifications
Key Specifications
| Grounding style | Style 2 |
|---|---|
| Configuration | Two-wire, three-pole |
| Horsepower | 1 hp |
| Material | Copper-free aluminum |
| Special features | Factory sealed |
| Amperage Rating | 20 A |
|---|---|
| Voltage rating | 125-250 Vac/18 Vdc |
| Frequency rating | 60 Hz |
| Contact material | Brass |
| Type | Delayed action circuit breaking |
General
| UPC | 782274182209 |
|---|---|
| Product Height | 5.88 in |
| Product Weight | 2 lb |
| Product Length/Depth | 5.13 in |
|---|---|
| Product Width | 5 in |
Certifications And Compliances
| Area classification | Hazardous/Classified Locations |
|---|---|
| NEC hazardous rating | Class I, Division 1 |
| Standards type | NEC/CEC |
|---|
